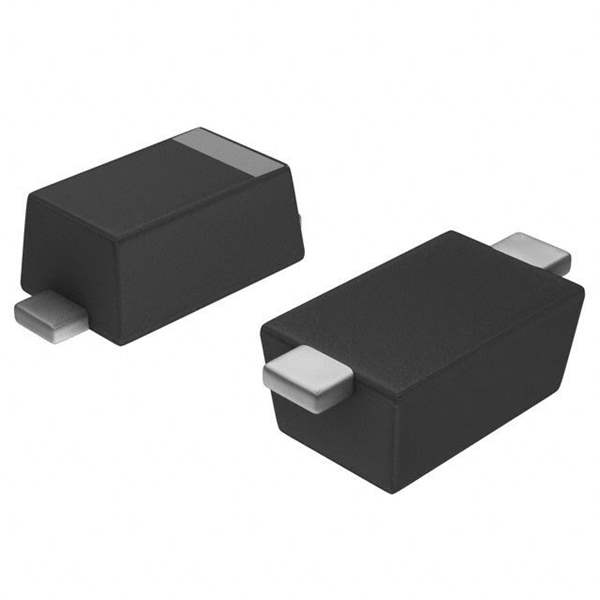

PTVS36VS1UR,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PTVS36VS1UR,115

Part No PTVS36VS1UR,115
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 36VWM 58.1VC SOD123W
Datasheet
PTVS36VS1UR,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 36V
Minimum Breakdown Voltage 40V
Max Clamping Voltage 58.1V
Peak Pulse Current(Ippm) 6.9A
Power Dissipation - Pd 400W
Applications Automotive
Temperature Range - Operating -55°C to 150°C (TA)
Mounting SMD (SMT)
Case / Package CFP3
Win Source Part Number 1090642-PTVS36VS1UR,115
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PTVS36VS1UR,115 CAD Model

Description

The Nexperia PTVS36VS1UR,115 is a unidirectional zener diode with a stand-off voltage of 36V and a minimum breakdown voltage of 40V.

  • Type: Unidirectional Zener Diode
  • Stand-Off Voltage: 36V
  • Minimum Breakdown Voltage: 40V
  • Max Clamping Voltage: 58.1V
  • Peak Pulse Current: 6.9A
  • Power Dissipation: 400W
  • Temperature Range: -55°C to 150°C
  • Package: CFP3
  • Application: Automotive Circuit Protection
