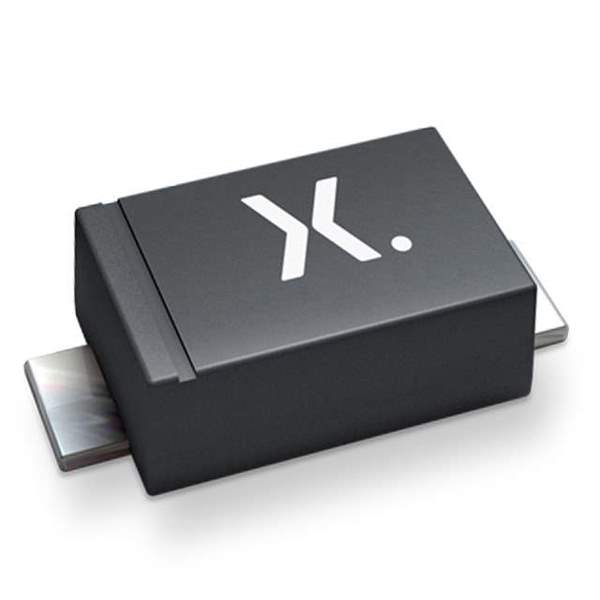

PMEG60T30ELRX Real Image
Same model may have multiple batches, images only for reference.

PMEG60T30ELRX

Part No PMEG60T30ELRX
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description PMEG60T30ELR/SOD123/SOD2 / Diode Schottky 60 V 3A Surface Mount SOD-123W
Datasheet
PMEG60T30ELRX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 620 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 17 ns
Current - Reverse Leakage @ Vr 1.8 µA @ 60 V
Capacitance @ Vr, F 580pF @ 1V, 1MHz
Mounting SMD (SMT)
Package / Case SOD-123W
Supplier Device Package SOD-123W
Operating Temperature - Junction 175°C (Max)
Base Product Number PMEG60
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 1727-7806-2,1727-7806-1,1727-7806-6,934070787115
Standard Package 3,000
Win Source Part Number 1022309-PMEG60T30ELRX
Ultra Librarian 3D Model Ultra Librarian PMEG60T30ELRX CAD Model

Description

The PMEG60T30ELRX is a Schottky diode from Nexperia USA Inc. that is designed for use in automotive applications.

  • Voltage - DC Reverse (Vr) (max): 60 V
  • Current - Average Rectified (Io): 3A
  • Voltage - Forward (Vf) (max) @ If: 620 mV @ 3 A
  • Reverse Recovery Time (trr): 17 ns
  • Current - Reverse Leakage @ Vr: 1.8 µA @ 60 V
  • Capacitance @ Vr, F: 580pF @ 1V, 1MHz
  • Package: SOD-123W
  • Standard Package: 3,000
  • Operating Temperature - Junction: 175°C (Max)
  • Application: ideal for use in automotive electronic applications.
