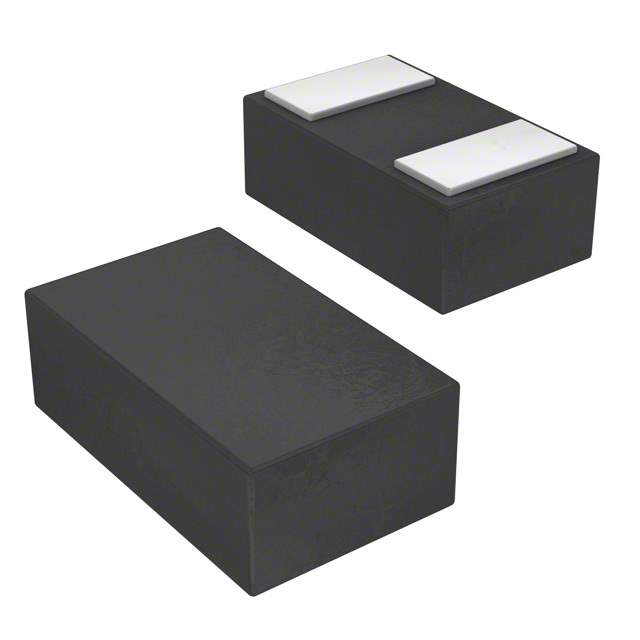

PMEG4010AESBYL Real Image PMEG4010AESBYL real image15802
PMEG4010AESBYL Real Image PMEG4010AESBYL real image15802
Same model may have multiple batches, images only for reference.

PMEG4010AESBYL

Part No PMEG4010AESBYL
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 1A SOD993
Datasheet
PMEG4010AESBYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Nexperia USA Inc.
Packaging Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 40V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Maximum) at If 505mV at 1A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 3.1ns
Current - Reverse Leakage at Vr 1250μA at 40V
Capacitance at Vr, F 75pF at 1V, 1MHz
Mounting Style SMD
Manufacturer Package 2-XDFN
Supplier Device Package DSN1006-2
Operating Temperature - Junction 150°C (Maximum)
Manufacturer Pack Quantity 10,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810455-PMEG4010AESBYL
Ultra Librarian 3D Model Ultra Librarian PMEG4010AESBYL CAD Model

Description

The Nexperia USA Inc. 810455-PMEG4010AESBYL is an electronic component that is used in various applications. This component is a Schottky diode that has a fast recovery speed of 200mA (Io).

  • Diode Type: Schottky
  • Current - Average Rectified (Io): 1A
  • Reverse Recovery Time (trr): 3.1ns
  • Operating Temperature - Junction: 150 degrees Celsius (Maximum)
  • Supply and Demand Status: Limited
  • Manufacturer: Nexperia USA Inc.
  • Packaging: Reel
  • Mounting Style: SMD
  • Voltage - DC Reverse (Vr) (Maximum): 40V
  • Manufacturer Pack Quantity: 10,000
  • MSL Level: 1 (Unlimited)
  • Voltage - Forward (Vf) (Maximum) @ If: 505mV @ 1A
  • Current - Reverse Leakage @ Vr: 1250μA @ 40V
  • Capacitance @ Vr, F: 75pF @ 1V, 1MHz
