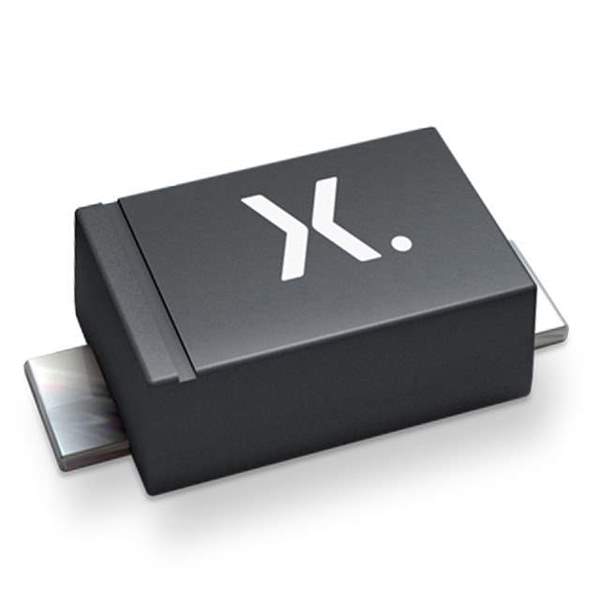

PMEG10020AELRX Real Image
Same model may have multiple batches, images only for reference.

PMEG10020AELRX

Part No PMEG10020AELRX
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 100V 2A SOD123W
Datasheet
PMEG10020AELRX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 26 Weeks
Features Diode Schottky 100 V 2A Surface Mount SOD-123W
Manufacturer Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Reel - TR
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Surface Mount
Package SOD-123W
Case / Package SOD-123W
Family Name PMEG10020
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 1727-2283-1, 568-12569-1-ND, 568-12569-6, 1727-2283-2, 568-12569-2-ND, 934068675115, 1727-2283-6, 568-12569-6-ND, 568-12569-2, 568-12569-1
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 930773-PMEG10020AELRX
Ultra Librarian 3D Model Ultra Librarian PMEG10020AELRX CAD Model

Description

The PMEG10020AELRX is a schottky diode designed and manufactured by Nexperia USA Inc.

  • Voltage Rating: 100V
  • Current Rating: 2A
  • Package: SOD-123W
  • Mounting Type: Surface Mount
  • Product Family: PMEG10020
  • Product Category: Discrete Semiconductor Product
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8541.10.0080
  • Supply and Demand: High demand and supply balance
  • Package Quantity: 3000
  • Production Lead Time: Estimated 26 weeks
