PESD5V0S1UB,115 Nexperia USA Inc. PESD5V0S1UB,115 real image

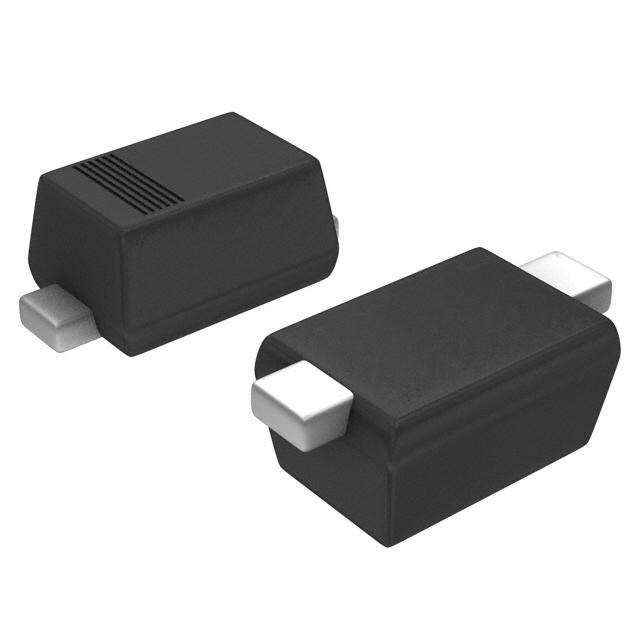

PESD5V0S1UB,115 Nexperia USA Inc. PESD5V0S1UB,115 real image
Same model may have multiple batches, images only for reference.

PESD5V0S1UB,115

Part No PESD5V0S1UB,115
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 20VC SOD523
Datasheet
PESD5V0S1UB,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6.4V
Max Clamping Voltage 20V
Peak Pulse Current(Ippm) 15A (8/20μs)
Power Dissipation - Pd 260W
Applications General Purpose
Capacitance @ Frequency 152pF @ 1MHz
Temperature Range - Operating -65°C to 150°C (TA)
Mounting SMD (SMT)
Case / Package SOD-523
Win Source Part Number 1087595-PESD5V0S1UB,115
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Computers & Computer Peripherals, Communications & Networking, Audio, Imaging, Video & Vision, Industrial
Ultra Librarian 3D Model Ultra Librarian PESD5V0S1UB,115 CAD Model

Description

The PESD5V0S1UB,115 is a Zener type circuit protection with a stand-off voltage of 5V (max) and a minimum breakdown voltage of 6.4V.

  • Type: Zener
  • Stand-Off Voltage: 5V (max)
  • Minimum Breakdown Voltage: 6.4V
  • Maximum Clamping Voltage: 20V
  • Peak Pulse Current (Ippm): 15A (8/20μs)
  • Capacitance: 152pF @ 1MHz
  • Mounting Type: SMD (SMT)
  • Package: SOD-523
  • Power Dissipation: 260W
