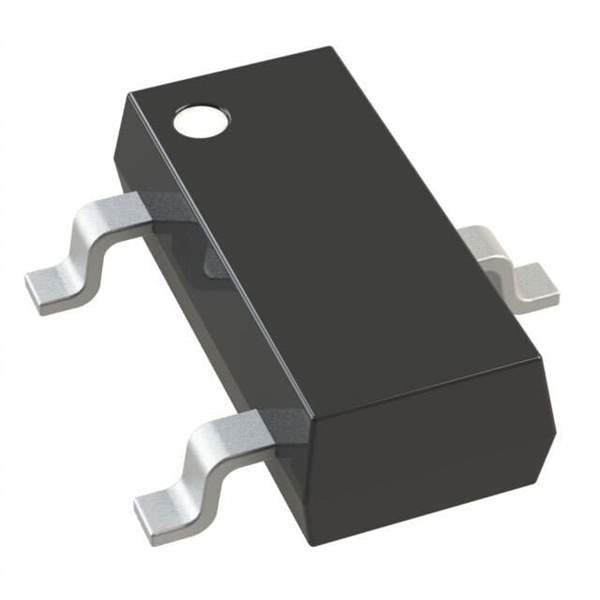

PESD2IVN24-TR Real Image
Same model may have multiple batches, images only for reference.

PESD2IVN24-TR

Part No PESD2IVN24-TR
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 24V 42V TO236AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Nexperia USA Inc.
Packaging Reel
Type Zener
Unidirectional Channels 2
Voltage - Reverse Standoff (Typ) 24V (Maximum)
Voltage - Breakdown (Min) 25.5V
Voltage - Clamping (Maximum) at Ipp 42V
Current - Peak Pulse (10/1000μs) 3.5A (8/20μs)
Power Line Protection No
Applications Automotive, CAN
Capacitance at Frequency 14pF at 1MHz
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package TO-236-3, SC-59, SOT-23-3
Supplier Device Package TO-236AB
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800559-PESD2IVN24-TR
Ultra Librarian 3D Model Ultra Librarian PESD2IVN24-TR CAD Model

Description

The Nexperia USA Inc. PESD2IVN24-TR is a high-quality zener that is perfect for your electronic circuit needs. This product is manufactured by Nexperia USA Inc.

  • Type: Zener
  • Channel: Unidirectional
  • Maximum Voltage Reverse Standoff: 24V
  • Minimum Voltage Breakdown: 25.5V
  • Voltage Clamping: 42V @ Ipp
