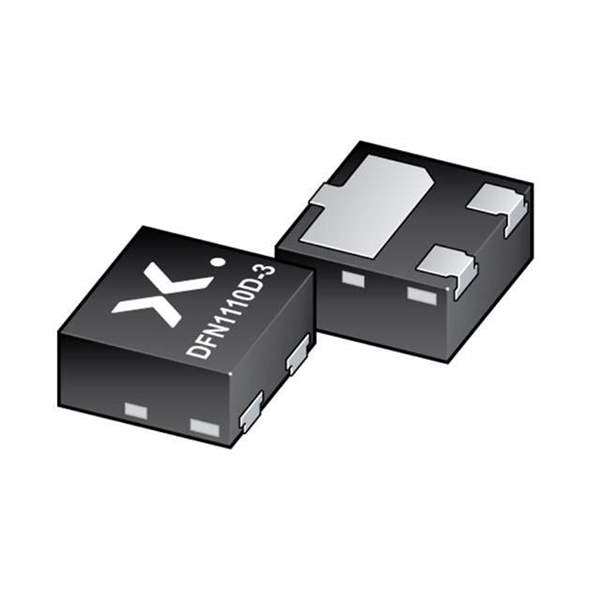

PESD2CANFD24V-QBZ Real Image
Same model may have multiple batches, images only for reference.

PESD2CANFD24V-QBZ

Part No PESD2CANFD24V-QBZ
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 24VWM 42VC DFN1110D-3 / 42V Clamp 2.6A (8/20µs) Ipp Tvs Diode Surface Mount, Wettable Flank DFN1110D-3
Datasheet
PESD2CANFD24V-QBZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Type Zener
Bidirectional Channels 2
Voltage - Reverse Standoff (Typ) 24V (Max)
Voltage - Breakdown (Min) 25.5V
Voltage - Clamping (Max) @ Ipp 42V
Current - Peak Pulse (10/1000µs) 2.6A (8/20µs)
Power Line Protection No
Applications Automotive, CAN
Capacitance @ Frequency 5.2pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TA)
Mounting Type Surface Mount, Wettable Flank
Package / Case 3-XDFN Exposed Pad
Supplier Device Package DFN1110D-3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 934661608147,1727-PESD2CANFD24V-QBZCT,1727-PESD2CANFD24V-QBZTR,1727-PESD2CANFD24V-QBZDKR
Standard Package 5,000
Win Source Part Number 1000525-PESD2CANFD24V-QBZ
Ultra Librarian 3D Model Ultra Librarian PESD2CANFD24V-QBZ CAD Model

Description

The PESD2CANFD24V-QBZ is a bidirectional TVS diode designed for use in automotive circuits and CAN applications and is from Nexperia USA Inc.

  • Channel Type: Bidirectional
  • Reverse Standoff Voltage (Max): 24V
  • Breakdown Voltage (Min): 25.5V
  • Voltage Clamping (Max) @ Ipp: 42V
  • Capacitance @ Frequency: 5.2pF @ 1MHz
  • Current Peak Pulse (10/1000µs): 2.6A (8/20µs)
  • Package/Case: 3-XDFN Exposed Pad
  • Temperature Range: -55°C ~ 150°C (TA)
