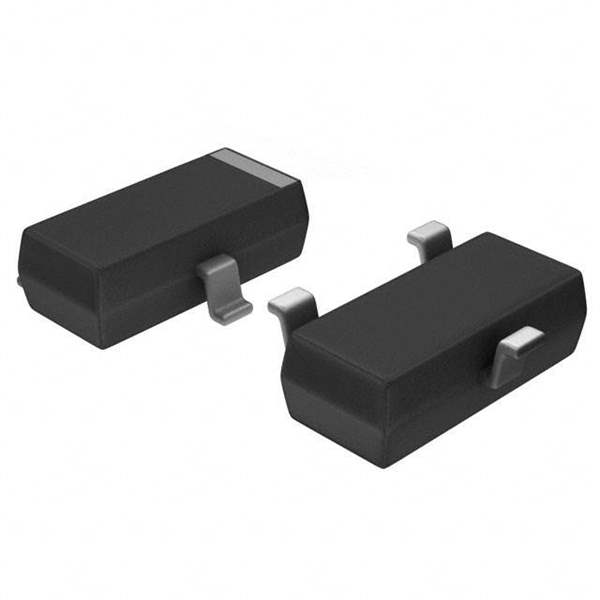

BAT720,215 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BAT720,215

Part No BAT720,215
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 500MA SOT23
Datasheet
BAT720,215 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 500mA (DC)
Voltage - Forward (Vf) (Max) @ If 550mV @ 500mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 100μA @ 35V
Capacitance @ Vr, F 90pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package TO-236AB (SOT23)
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 1022187-BAT720,215
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BAT720,215 CAD Model

Description

The Nexperia USA Inc. BAT720,215 is a Schottky diode designed for use in discrete semiconductor products.

  • Maximum DC Reverse Voltage: 40V
  • Average Rectified Current: 500mA
  • Forward Voltage: 550mV @ 500mA
  • Reverse Leakage Current: 100μA @ 35V
  • Capacitance: 90pF @ 0V, 1MHz
  • Maximum Junction Temperature: 125°C
  • Package: TO-236AB (SOT23)
  • Mounting: surface-mount technology (SMT)
  • Speed: 200mA (Io)
