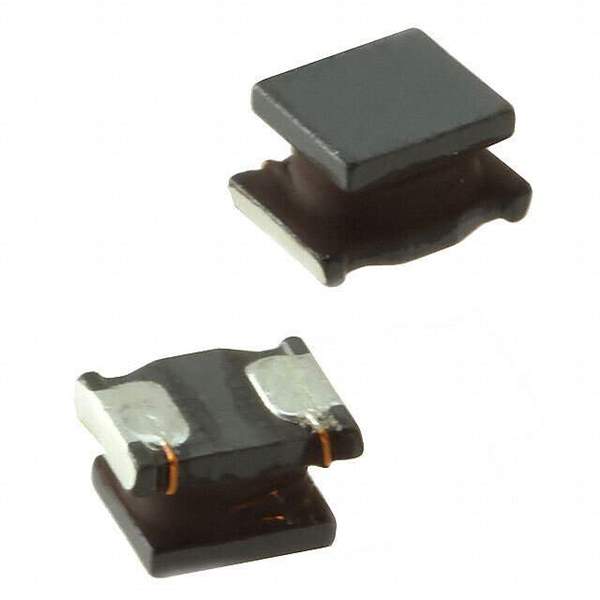

LQH43MN220K03L Real Image
Same model may have multiple batches, images only for reference.

LQH43MN220K03L

Part No LQH43MN220K03L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 22UH 320MA 940 MOHM
Datasheet
LQH43MN220K03L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±10%
Current Rating 320mA
DC Resistance (DCR) 940 mOhm Max
Q @ Freq 35 @ 1MHz
Frequency - Self Resonant 15MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 1812
Height - Seated (Max) 0.110" (2.80mm)
Win Source Part Number 130667-LQH43MN220K03L
Ultra Librarian 3D Model Ultra Librarian LQH43MN220K03L CAD Model

Description

The Murata Electronics North America LQH43MN220K03L is a wirewound inductor designed for use in various electronic devices.

  • Inductance: 22µH
  • Current Rating: 320mA
  • Core Material: Ferrite
  • Q @ Freq: 35 @ 1MHz
  • Package: 1812
  • Tolerance: ±10%
  • Supply and Demand: Balanced
