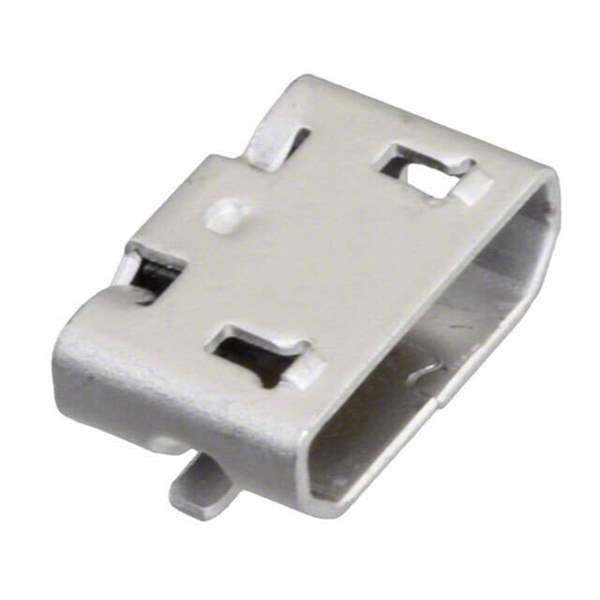

47346-1001 Real Image
Same model may have multiple batches, images only for reference.

47346-1001

Part No 47346-1001
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Description Conn Micro USB Type B RCP 5 POS 0.65mm Solder RA SMD 5 Terminal 1 Port Embossed T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Gold
Contact Plating Gold
Country of Origin CN
Current Rating 1.8 A
Gender Female
Halogen Free Low Halogen
Height 3.19 mm
Housing Material Polymer
Length 7.8 mm
Max Operating Temperature 85 °C
Min Operating Temperature -30 °C
Mount Surface Mount
Number of Circuits 5
Number of Contacts 5
Number of Rows 1
Orientation Right Angle
Packaging Tape & Reel (TR)
Pitch 650 µm
Plating Gold
REACH SVHC No SVHC
RoHS Compliant
Schedule B 8536695050
Termination Solder
USB Standard USB 2.0
Voltage Rating 30 V
Win Source Part Number 1134909-47346-1001
Categories USB,DVI,HDMI Connectors
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 47346-1001 CAD Model

Description

The Molex 1134909-47346-1001 is a female USB connector with a right-angle orientation.

  • Voltage Rating: 30 V
  • Current Rating: 1.8 A
  • Contacts: 5
  • Contact Material: Gold
  • Housing Material: Polymer
  • Mount Type: Surface Mount
  • RoHS Compliance: Compliant
  • Halogen Content: Low halogen
  • Suitable for: USB, DVI, and HDMI connectors
