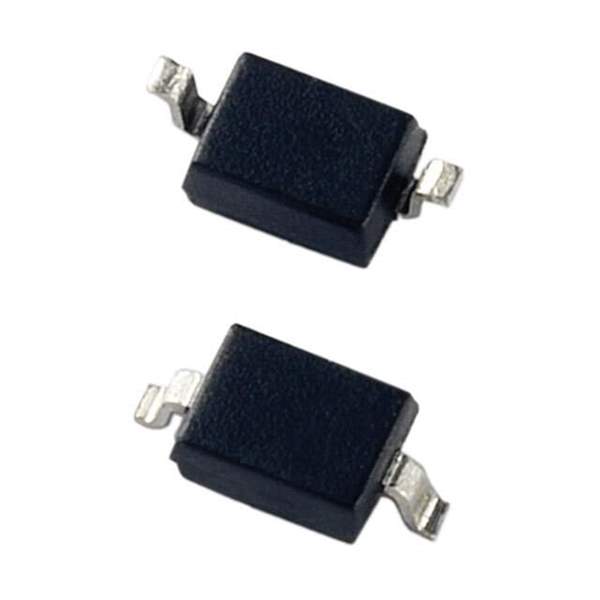

SP4022-01FTG-C Real Image
Same model may have multiple batches, images only for reference.

SP4022-01FTG-C

Part No SP4022-01FTG-C
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 12VWM 35VC SOD323
Datasheet
SP4022-01FTG-C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 12V (Max)
Minimum Breakdown Voltage 13.3V
Max Clamping Voltage 35V
Peak Pulse Current(Ippm) 15A (8/20μs)
Power Dissipation - Pd 500W
Applications Automotive
Capacitance @ Frequency 1.3pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-323
Win Source Part Number 1101351-SP4022-01FTG-C
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SP4022-01FTG-C CAD Model

Description

The Littelfuse Inc. 1101351-SP4022-01FTG-C is a high-quality surface mount steering diode designed for circuit protection in automotive applications.

  • Power Line Protection: 500W
  • Current - Peak Pulse (Ippm): 15A (8/20μs)
  • STAND-OFF Voltage (Vwm): 12V (Max)
  • Voltage - Breakdown (Min): 13.3V
  • Package / Case: SOD-323
