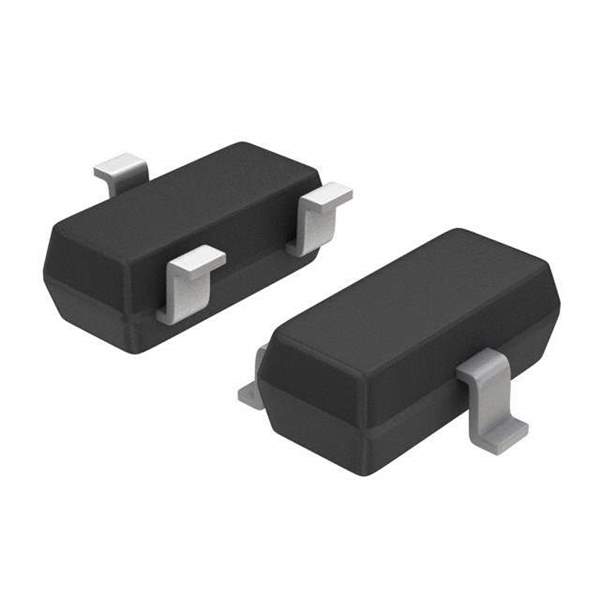

SP0502BAHTG Real Image
Same model may have multiple batches, images only for reference.

SP0502BAHTG

Part No SP0502BAHTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 8.5VC SOT23
Datasheet
SP0502BAHTG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 2
STAND-OFF Voltage (Vwm) 5.5V (Max)
Max Clamping Voltage 8.5V
Applications General Purpose
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package SOT-23-3
Win Source Part Number 030560-SP0502BAHTG
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Computers & Computer Peripherals, Consumer Electronics, Safety
Family Name SP0502BAH
Introduction Date March 20, 2006
ECCN EAR99
Country of Origin China, Malaysia
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian SP0502BAHTG CAD Model

Description

The SP0502BAHTG is a Zener type TVS diode manufactured by Littelfuse Inc.

  • Type: Zener
  • Function: provides protection against transient voltage spikes
  • Stand-off Voltage (Vwm): 5.5V (Max)
  • Maximum Clamping Voltage: 8.5V
  • Package: SOT-23-3
  • Application: suitable for general purpose applications
  • Popularity: common-used part with high popularity
  • Supply and Demand: sufficient supply and demand status
  • Suitable for: computers and computer peripherals, consumer electronics, and safety applications
