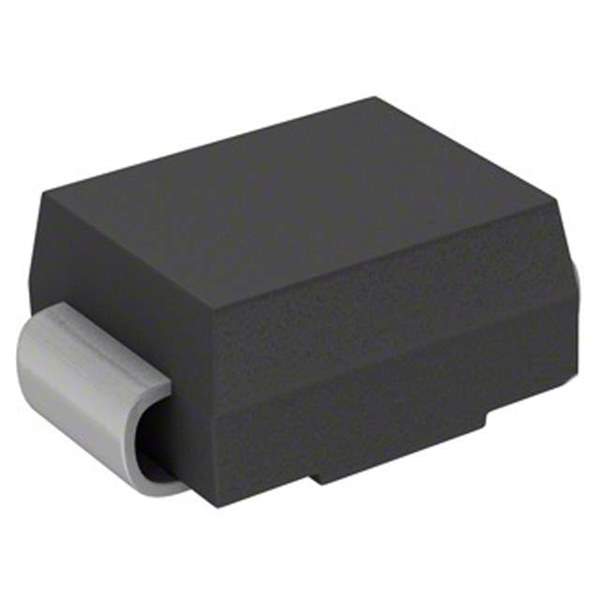

SMBJ85A Real Image
Same model may have multiple batches, images only for reference.

SMBJ85A

Part No SMBJ85A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 85VWM 137VC SMB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Standard Package 1
Category Circuit Protection
Family TVS - Diodes
Series SMBJ
Packaging Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 85V
Voltage - Breakdown (Min) 94.4V
Voltage - Clamping (Max) @ Ipp 137V
Current - Peak Pulse (10/1000µs) 4.4A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style SMD/SMT
Package DO-214AA SMB
Manufacturer Device Package DO-214AA (SMBJ)
Catalog SMBJ Series
Win Source Part Number 047003-SMBJ85A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SMBJ85A CAD Model

Description

The SMBJ85A is a Littelfuse Inc. electronic component.

  • Type: TVS diode with a zener type
  • Channel: Unidirectional
  • Voltage Breakdown: 94.4V
  • Voltage Clamping: 137V @ Ipp
  • Peak Pulse Power: 600W
  • Peak Pulse Current: 4.4A @ 10/1000µs
  • Mounting Type: Surface Mountable
  • Package: DO-214AA SMB
  • Popularity: Medium
  • Supply and Demand Status: Balance
