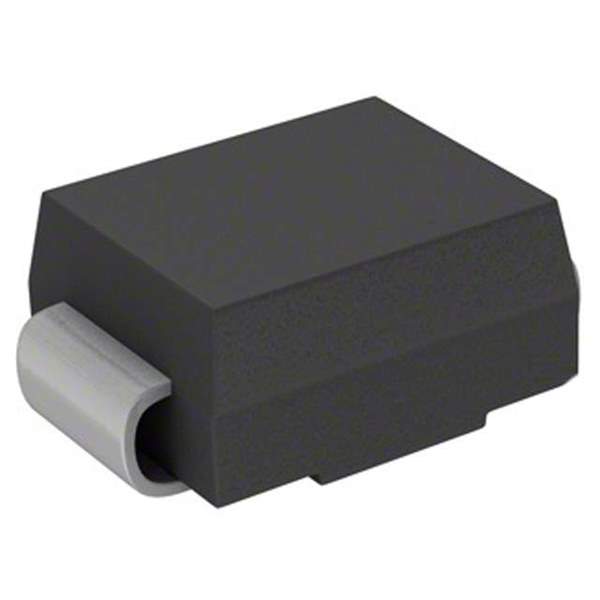

SMBJ220CA Real Image
Same model may have multiple batches, images only for reference.

SMBJ220CA

Part No SMBJ220CA
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description Silicon Avalanche Diodes - 600W Surface Mount Transient Voltage Supressors
Datasheet
SMBJ220CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series SMBJ
Packaging Reel - TR
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 220V
Minimum Breakdown Voltage 246V
Maximum Clamping Voltage 356V
Current - Peak Pulse (10/1000μs) 1.7A
Power - Peak Pulse 600W
Power Line Protection No
Applications General
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Package DO-214AA, SMB
Manufacturer Package DO-214AA (SMBJ)
Win Source Part Number 1251476-SMBJ220CA
Manufacturer Homepage www.littelfuse.com
Family Name SMBJ220CA
Introduction Date June 01, 2005
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SMBJ220CA CAD Model

Description

The SMBJ220CA is a high-quality electronic component manufactured by Littelfuse Inc.

  • Supply and demand status: Balanced
  • Design: Designed to meet the highest quality standards
  • Warranty: Backed by the manufacturer's warranty
  • Performance: Reliable and efficient component that offers excellent performance and durability.
  • Ideal for: Use in a wide range of applications, including industrial automation, power generation, and telecommunications.
  • Usage: Widely used in various electronic devices and is known for its high quality and reliability.
