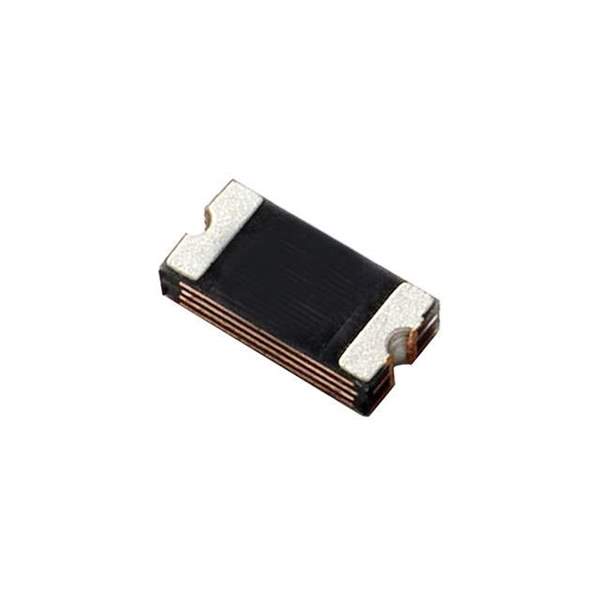

1206L012WR Real Image
Same model may have multiple batches, images only for reference.

1206L012WR

Part No 1206L012WR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET 30V .125A SMD 1206
Datasheet
1206L012WR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 30V
Current - Max 100A
Current - Hold (Ih) (Max) 125mA
Current - Trip (It) 290mA
Time to Trip 200ms
Resistance - Initial (Ri) (Min) 1.5 Ohm
Resistance - Post Trip (R1) (Max) 6 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.065" W (3.20mm x 1.65mm)
Thickness (Max) 0.057" (1.45mm)
Approvals cURus, TUV
Win Source Part Number 005208-1206L012WR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Computers & Computer Peripherals, Consumer Electronics
Family Name 1206L
Introduction Date May 12, 2005
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian 1206L012WR CAD Model

Description

1206L012WR Resistor

The 1206L012WR resistor is designed for current limiting applications in electronic circuits. This component ensures stability and performance in intense environments.

  • Applications:
    • LED lighting systems
    • Battery management circuits
    • Automotive systems
    • Consumer electronics
  • Features & Benefits:
    • Compact size suitable for tight spaces
    • High resistance accuracy
    • Thermal management capabilities
    • Durability under stress
  • Additional Details:

The 1206L012WR is perfect for projects requiring precise resistance performance. Its compact design does not compromise its robustness or reliability.
