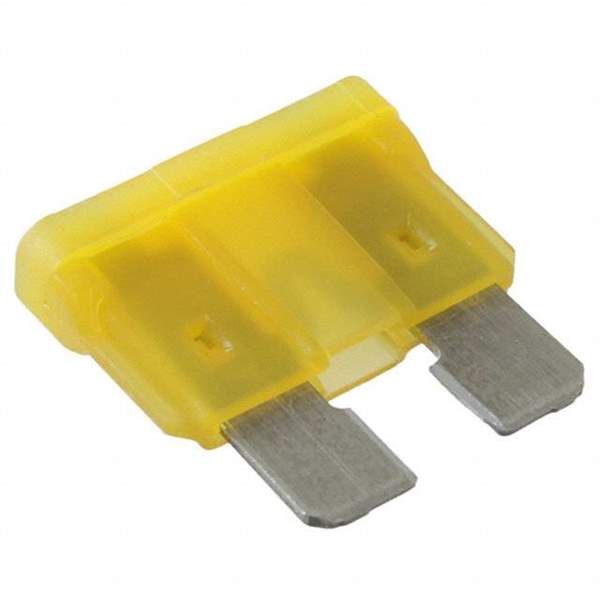

0287020.PXCN Real Image
Same model may have multiple batches, images only for reference.

0287020.PXCN

Part No 0287020.PXCN
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTOMOTIVE 20A 32VDC BLADE / ATOF™ Blade Fuse Rated 32V
Datasheet
0287020.PXCN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Automotive
Current Rating (Amps) 20A
Voltage Rating - DC 32V
Response Time Fast Blow
Manufacturer Package Blade, ATO/ATC
Mounting Style Holder
Breaking Capacity at Rated Voltage 1kA
Melting I2t 520
Approvals UL
Temperature Range - Operating -40°C ~ 105°C
Color Yellow
Dimension 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm)
DC Cold Resistance 0.00338 Ohms
Manufacturer Pack Quantity 2,000
MSL Level Not Applicable
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801317-0287020.PXCN
Ultra Librarian 3D Model Ultra Librarian 0287020.PXCN CAD Model

Description

The 801317-0287020.PXCN is an automotive fast-blow fuse from Littelfuse Inc.

  • Voltage Rating: 32VDC
  • Current Rating: 20A
  • DC Cold Resistance: 0.00338 Ohms
  • Breaking Capacity: 1kA @ rated voltage
  • Temperature Range: -40°C to 105°C
  • Dimensions: 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm)
  • Package: Blade, ATO/ATC
  • Popularity: High
  • Approvals: UL
  • Supply and Demand Status: Sufficient
  • MSL Level: Not Applicable
