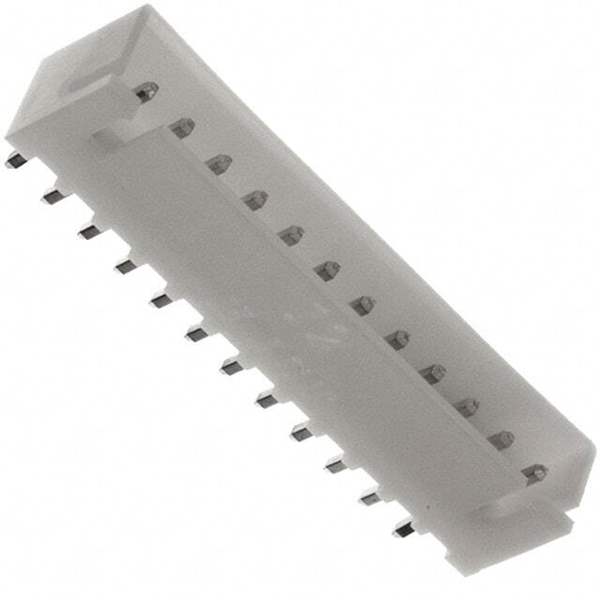

B12B-XH-A(LF)(SN)
Same model may have multiple batches, images only for reference.

B12B-XH-A(LF)(SN)

Part No B12B-XH-A(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 12POS 2.5MM / Connector Header Through Hole 12 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series XH
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 12
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.276" (7.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 9.8mm
Base Product Number B12B-XH
Standard Package 250 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 851248-B12B-XH-A(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B12B-XH-A(LF)(SN) CAD Model

Description

The 851248-B12B-XH-A(LF)(SN) is a header connector with male pins from the XH series.

  • Positions: 12
  • Connection Type: Board to Cable/Wire
  • Material: Brass
  • Voltage Rating: 250V
  • Packaging: Bulk
  • Standard Package: 250 pieces
  • Contact Finish: Tin
  • Shrouded: Yes, 4 Walls
  • Fastening Type: Detent Lock
  • Temperature Range: -25°C to 85°C
  • Manufacturer: JST Sales America Inc.
  • Product Status: Active
