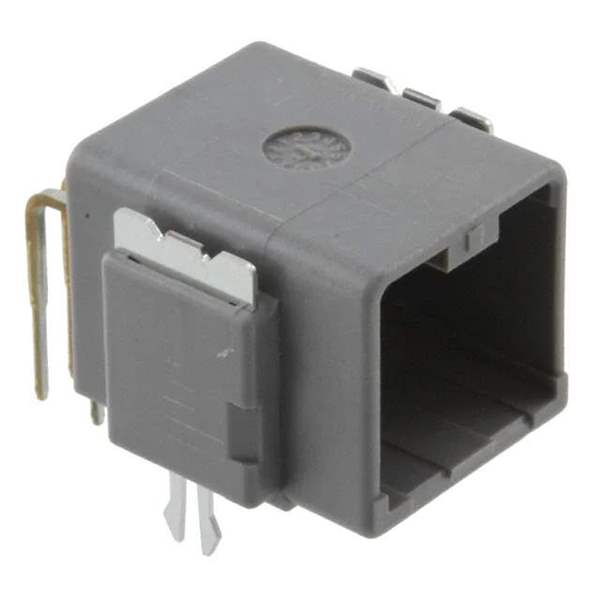

MX34E08NF1 Real Image
Same model may have multiple batches, images only for reference.

MX34E08NF1

Part No MX34E08NF1
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN HEADER R/A 8POS 2.4MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JAE Electronics
Series MX34
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.094" (2.40mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.138" (3.50mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.559" (14.20mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Board Lock
Temperature Range - Operating -40°C ~ 85°C
Insulation Color Gray
Current Rating (Amps) 3A
Applications Automotive
Base Product Number MX34E08N
Standard Package 28 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 848392-MX34E08NF1
Ultra Librarian 3D Model Ultra Librarian MX34E08NF1 CAD Model

Description

The MX34E08NF1 is a male pin header connector from the MX34 series from an unspecified manufacturer.

  • Positions: 8
  • Pitch: 0.094" (2.40mm)
  • Board Lock: Yes
  • Mounting: Through-Hole, Right Angle
  • Design: Shrouded 4-Wall
  • Contact Material: Brass
  • Contact Finish: Tin
  • Temperature Range: -40°C to 85°C
  • Application: Automotive
  • Current Rating: 3A
  • Package: Tube
  • Standard Package Quantity: 28 pcs
  • Status: Active
  • California Prop 65: Yes
