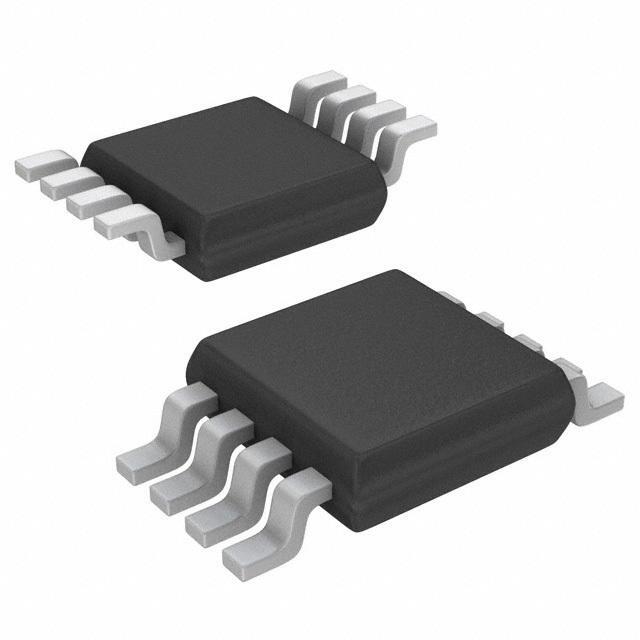

ISL83072EIUZA-T Intersil ISL83072EIUZA-T Real Image ISL83072EIUZA-T real image14734 ISL83072EIUZA-T real image 2 ISL83072EIUZA-T label picture
ISL83072EIUZA-T Intersil ISL83072EIUZA-T Real Image ISL83072EIUZA-T real image14734 ISL83072EIUZA-T real image 2 ISL83072EIUZA-T label picture
Same model may have multiple batches, images only for reference.

ISL83072EIUZA-T

Part No ISL83072EIUZA-T
Manufacturer Intersil
Catalog Interface - Drivers, Receivers, Transceivers
Description IC TXRX RS422/485 250KBPS 8MSOP
Datasheet
ISL83072EIUZA-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Intersil
Packaging Reel package
Type Transceiver
Protocol RS422, RS485
Number of Drivers/Receivers 1/1
Duplex Half
Receiver Hysteresis 15mV
Data Rate 250kbps
Operating Supply Voltage 3 V ~ 3.6 V
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Manufacturer Package 8-MSOP
Win Source Part Number 777433-ISL83072EIUZA-T
Family Name ISL83072E
Introduction Date March 27, 2003
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ISL83072EIUZA-T CAD Model

Description

The Intersil ISL83072EIUZA-T is a transceiver from Intersil.

  • Supply Voltage: 3V to 3.6V
  • Data Rate: 250kbps
  • Package: 8-TSSOP, 8-MSOP
  • Protocol: RS422, RS485 (Half-duplex)
  • Drivers: 1
  • Receivers: 1
  • Receiver Hysteresis: 15mV
  • Supply and Demand Status: Limited
