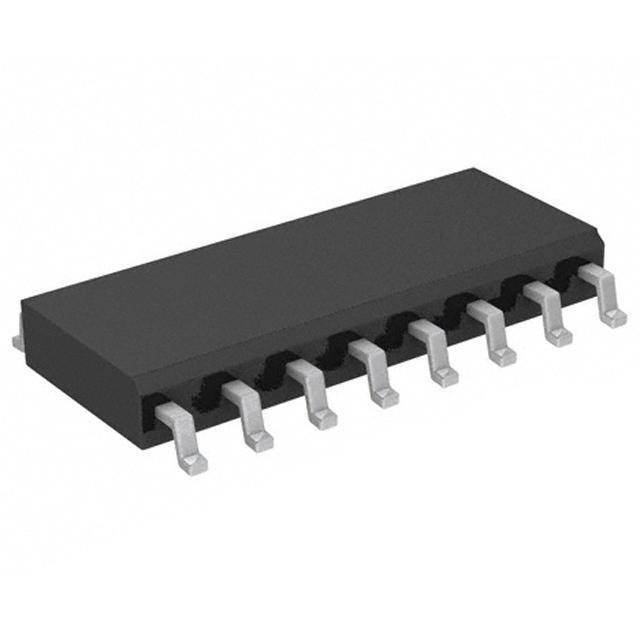

IR2086SPBF

Part No IR2086SPBF
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description IC DVR FULL BRIDGE HI/LOW 16SOIC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Obsolete(EOL)
Driven Configuration Half-Bridge
Channel Type Synchronous
Number of Drivers 4
Gate Type N-Channel MOSFET
Supply Voltage - Operating 9.5 V to 15 V
Current - Peak Output (Source, Sink) 1.2A, 1.2A
Input Type RC Input Circuit
High Side Voltage - Max (Bootstrap) 100V
Rise and Fall Time 40ns, 20ns
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 16-SOIC
Win Source Part Number 069143-IR2086SPBF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IR2086SPBF CAD Model

Description

The Infineon Technologies IR2086SPBF is a half-bridge driver IC that is designed for use in synchronous channel type applications.

  • Drivers: Four drivers for N-channel MOSFET gate type
  • Current Peak Output: 1.2A and 1.2A
  • Input Type: RC input circuit
  • High Side Voltage: 100V
  • Package: 16-SOIC
  • Popularity: Medium
  • Operating Temperature Range: from -40°C to 125°C (TJ)
  • Supply Voltage Range: from 9.5V to 15V
