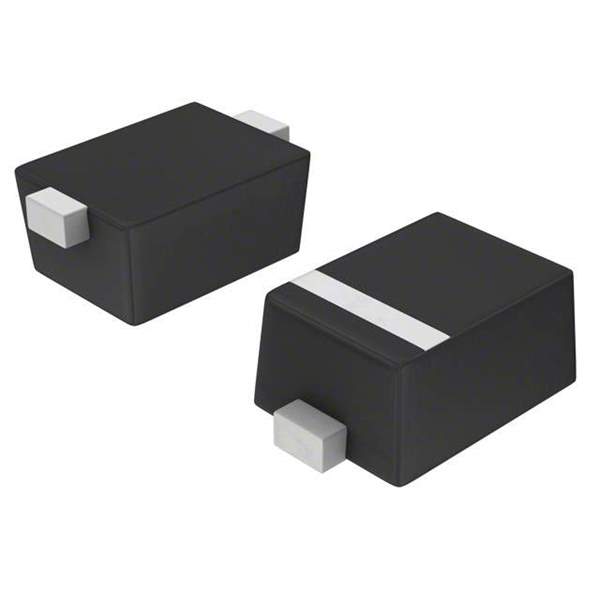

BBY5702WH6327XTSA1 Real Image
Same model may have multiple batches, images only for reference.

BBY5702WH6327XTSA1

Part No BBY5702WH6327XTSA1
Manufacturer Infineon Technologies
Catalog Variable Capacitance Diodes (Varicaps, Varactors)
Description DIODE TUNING 10V 20MA SCD80
Datasheet
BBY5702WH6327XTSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Capacitance @ Vr, F 5.5pF @ 4V, 1MHz
Capacitance Ratio 4.5
Capacitance Ratio Condition C1/C4
Voltage - Peak Reverse (Max) 10V
Diode Type Single
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package PG-SCD80-2
Win Source Part Number 104650-BBY5702WH6327XTSA1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BBY5702WH6327XTSA1 CAD Model

Description

BBY5702WH6327XTSA1 - Versatile Microwave Diode

The BBY5702WH6327XTSA1 is engineered for microwave applications that require exceptional precision and reliability. It provides a seamless performance in advanced electronic systems.

  • Applications: Satellite communications, Microwave transceivers, Aerospace electronics, High-frequency radar systems.
  • Features and Benefits:
    • Wide frequency bandwidth: Capable of handling diverse frequencies with ease.
    • Enhanced linearity: Ensures consistent signal output, crucial for detailed communications.
    • Advanced packaging: Offers protection against environmental influences, extending diode life.
  • Additional Details: The BBY5702WH6327XTSA1's advanced features make it ideal for high-stakes environments such as aerospace and satellite systems, where precision and reliability cannot be compromised.
