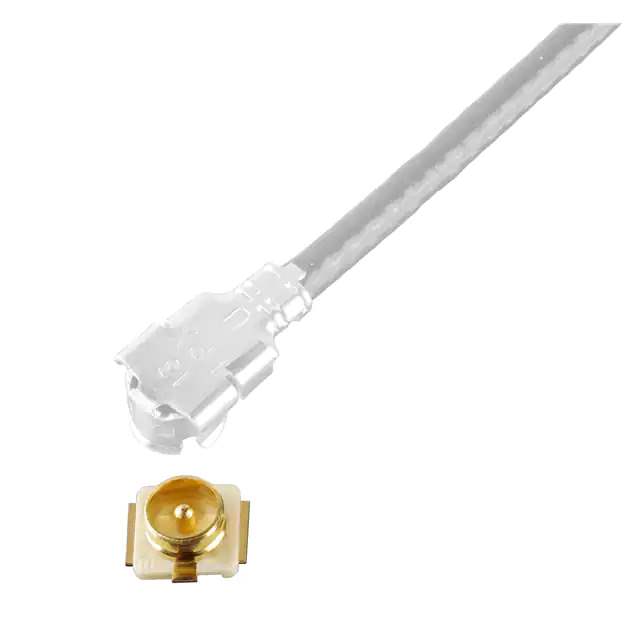

20279-001E-03 Real Image 20279-001E-03 label picture
20279-001E-03 Real Image 20279-001E-03 label picture
Same model may have multiple batches, images only for reference.

20279-001E-03

Part No 20279-001E-03
Manufacturer I-Pex
Catalog Coaxial Connectors (RF) - Assemblies
Description MHF I RECEPTACLE
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr I-PEX
Package Tape & Reel
Product Status Active
Connector Style U.FL (UMCC), IPEX MHF1
Connector Type Receptacle, Male Pin
Contact Termination Solder
Shield Termination Solder
Mounting Type Surface Mount
Fastening Type Snap-On
Frequency - Max 9 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 90°C
Voltage Rating 60 V
Mating Cycles 30
Base Product Number 20279
Standard Package 5,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 814999-20279-001E-03
Ultra Librarian 3D Model Ultra Librarian 20279-001E-03 CAD Model

Description

The 814999-20279-001E-03 is a coaxial connector assembly from I-PEX.

  • Connector type: Receptacle
  • Pin connector type: Male pin
  • Fastening type: Snap-on
  • Applications: RF (Radio Frequency)
  • Maximum frequency: 9 GHz
  • Packaging: Tape and reel
  • Standard package: 5,000 pieces
  • Mounting: Surface mount
  • Temperature range: -40°C to 90°C
  • Housing color: Gold
  • Contact termination: Solder
