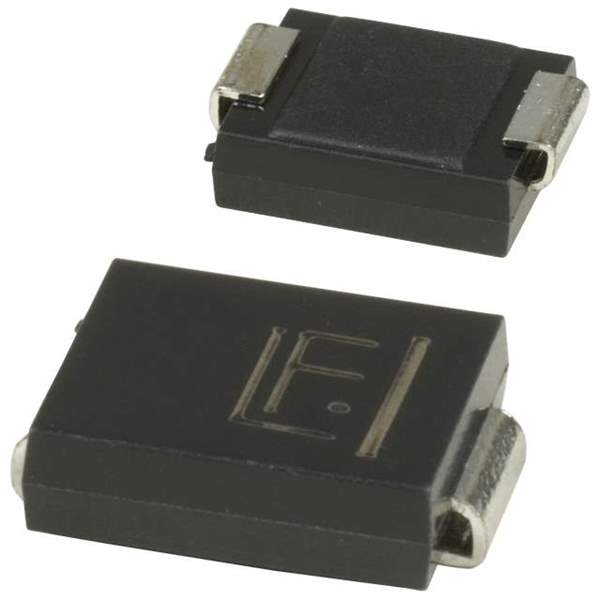

SMCJ160A Real Image
Same model may have multiple batches, images only for reference.

SMCJ160A

Part No SMCJ160A
Manufacturer Fairchild/ON Semiconductor
Catalog TVS - Diodes
Description TVS DIODE 160VWM 259VC SMC
Datasheet
SMCJ160A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 160V
Minimum Breakdown Voltage 178V
Max Clamping Voltage 259V
Peak Pulse Current(Ippm) 5.8A
Power Dissipation - Pd 1500W (1.5kW)
Applications General Purpose
Mounting SMD (SMT)
Case / Package SMC (DO-214AB)
Win Source Part Number 029288-SMCJ160A
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SMCJ160A CAD Model

Description

The Fairchild/ON Semiconductor SMCJ160A is a Zener diode manufactured by Fairchild/ON Semiconductor.

  • Supply and demand: sufficient
  • Application: voltage regulation, surge protection, and reverse voltage protection
  • STAND-OFF voltage: 160V
  • Minimum breakdown voltage: 178V
  • Power dissipation: 1500W (1.5kW)
  • Mounting: SMD (SMT)
  • Package: SMC (DO-214AB)
