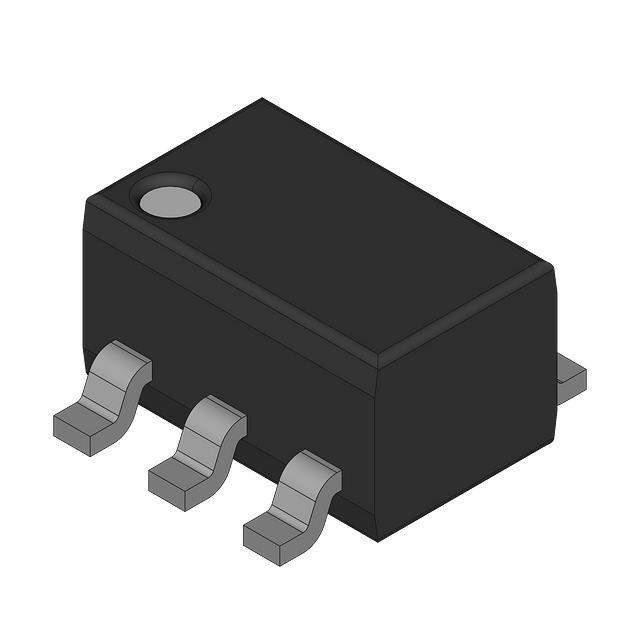

NC7WZ14EP6X Real Image NC7WZ14EP6X Real Image1 NC7WZ14EP6X Real Image2 NC7WZ14EP6X Real Image3 NC7WZ14EP6X Real Image4 NC7WZ14EP6X Real Image5 NC7WZ14EP6X Real Image6 NC7WZ14EP6X Real Image7
NC7WZ14EP6X Real Image NC7WZ14EP6X Real Image1 NC7WZ14EP6X Real Image2 NC7WZ14EP6X Real Image3 NC7WZ14EP6X Real Image4 NC7WZ14EP6X Real Image5 NC7WZ14EP6X Real Image6 NC7WZ14EP6X Real Image7
Same model may have multiple batches, images only for reference.

NC7WZ14EP6X

Part No NC7WZ14EP6X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description IC INVERTER UHS SCHMITT SC70-6
Datasheet
NC7WZ14EP6X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type Inverter
Number of Circuits 2
Number of Inputs 2
Features Schmitt Trigger
Supply Voltage - Operating 1.65 V to 5.5 V
Current - Quiescent (Max) 1μA
Current - Output High, Low 32mA, 32mA
Logic Level - Low 0.2 V to 1.2 V
Logic Level - High 1.4 V to 3.6 V
Max Propagation Delay @ V, Max CL 4.9ns @ 5V, 50pF
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package SC-70-6
Dimension 6-TSSOP, SC-88, SOT-363
Win Source Part Number 024873-NC7WZ14EP6X
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian NC7WZ14EP6X CAD Model

Description

The Fairchild/ON Semiconductor NC7WZ14EP6X is a 2-circuit inverter logic type IC with a Schmitt trigger feature.

  • Maximum Propagation Delay: 4.9ns @ 5V and 50pF
  • Quiescent Current: 1μA
  • Logic Level (Low): 0.2 V to 1.2 V
  • Logic Level (High): 1.4 V to 3.6 V
  • Package: SC-70-6
  • Mounting: Surface mount
  • Status: Active
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Quantity: 3,000 pieces
