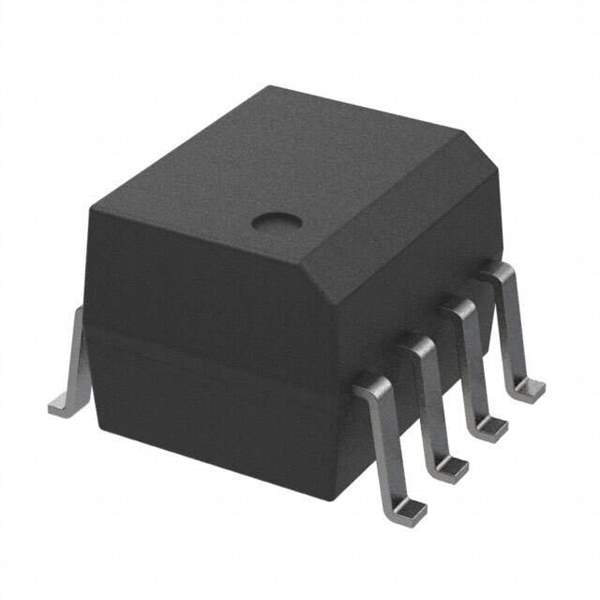

HCPL0600R2V Real Image
Same model may have multiple batches, images only for reference.

HCPL0600R2V

Part No HCPL0600R2V
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Logic Output
Description OPTOISO 3.75KV OPN COLLECTOR 8SO
Datasheet
HCPL0600R2V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 3750Vrms
Common Mode Transient Immunity (Min) 5kV/μs
Input Type DC
Output Type Open Collector
Channel Output Current 50mA
Data Rate 10Mbps
Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
Rise and Fall Time 50ns, 12ns
Forward Voltage 1.75V (Max)
Continuous forward current- Max 50mA
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-SO Tall
Win Source Part Number 1042521-HCPL0600R2V
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian HCPL0600R2V CAD Model

Description

The Fairchild/ON Semiconductor 449244 is an SMD (SMT) mounted isolator with an output type of open collector.

  • Mounting Type: SMD (SMT)
  • Output Type: Open Collector
  • Data Rate: 10Mbps
  • Forward Voltage: 1.75V (Max)
  • Common Mode Transient Immunity (Min): 5kV/μs
  • Propagation Delay tpLH / tpHL (Max): 75ns, 75ns
  • Isolation Voltage: 3750Vrms
  • Case/Package: 8-SO Tall
  • Supply Voltage - Operating: 4.5 V to 5.5 V
  • Rise and Fall Time: 50ns, 12ns
  • Channel Output Current: 50mA
  • Market Popularity: Medium
  • Supply and Demand Status: Balanced
  • Package Quantity: 2,500
