HCPL0600R2 Real Image HCPL0600R2 Real Image

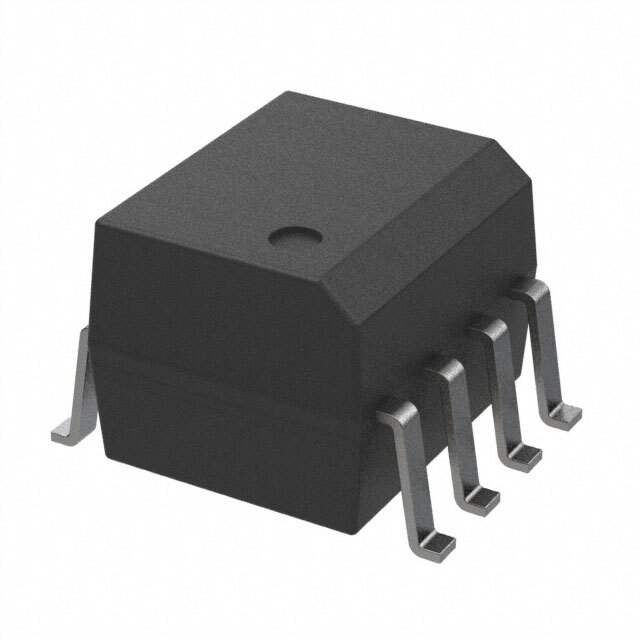

HCPL0600R2 Real Image HCPL0600R2 Real Image
Same model may have multiple batches, images only for reference.

HCPL0600R2

Part No HCPL0600R2
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Logic Output
Description OPTOISO 3.75KV OPN COLLECTOR 8SO
Datasheet
HCPL0600R2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 3750Vrms
Common Mode Transient Immunity (Min) 5kV/μs
Input Type DC
Output Type Open Collector
Channel Output Current 50mA
Data Rate 10Mbps
Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
Rise and Fall Time 50ns, 12ns
Forward Voltage 1.75V (Max)
Continuous forward current- Max 50mA
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-SO Tall
Win Source Part Number 016833-HCPL0600R2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name HCPL0600
Introduction Date July 01, 2005
ECCN EAR99
Country of Origin Japan, Thailand
Halogen Free Compliant
Estimated EOL Date 2024
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian HCPL0600R2 CAD Model

Description

The HCPL0600R2 is an isolator component manufactured by Fairchild/ON Semiconductor. It is a single-channel device.

  • Output Type: Open Collector
  • Data Rate: 10Mbps
  • Common Mode Transient Immunity: ≥ 5kV/μs
  • Propagation Delay (tpLH/tpHL): 75ns / 75ns
  • Isolation Voltage: 3750Vrms
  • Package: 8-SO Tall
  • Operating Temperature: -40°C to 85°C
  • Supply Voltage: 4.5V to 5.5V
  • Channel Output Current: 50mA
  • Continuous Forward Current: 50mA
  • Quantity per Package: 2,500
