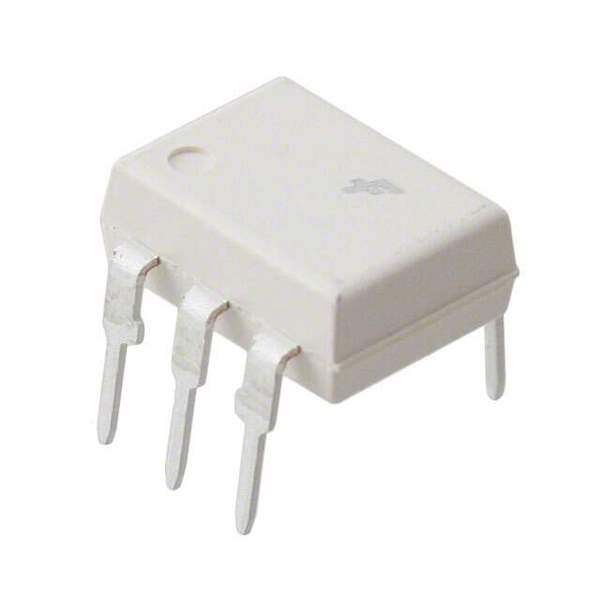

H11AA1. Real Image
Same model may have multiple batches, images only for reference.

H11AA1.

Part No H11AA1.
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5.3KV TRANS W/BASE 6DIP
Datasheet
H11AA1. Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 5300Vrms
Minimum DC Current Transfer Ratio 20% @ 10mA
Input Type AC, DC
Maximum Output Voltage 30V
Forward Voltage 1.2V
Continuous forward current- Max 100mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Win Source Part Number 204525-H11AA1.
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Sensing & Instrumentation, Motor Drive & Control, Communications & Networking
Ultra Librarian 3D Model Ultra Librarian H11AA1. CAD Model

Description

The Fairchild/ON Semiconductor H11AA1 is an obsolete (EOL) 6-DIP package optocoupler. It has an isolation voltage of 5300Vrms and a maximum output voltage of 30V.

  • Isolation Voltage: 5300Vrms
  • Maximum Output Voltage: 30V

The device is suitable for use in sensing and instrumentation, motor drive and control, and communications and networking applications. The minimum DC current transfer ratio is 20% at 10mA.
