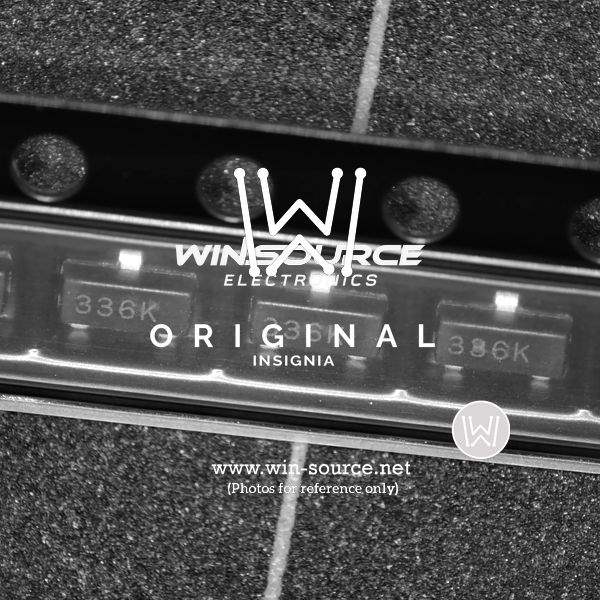

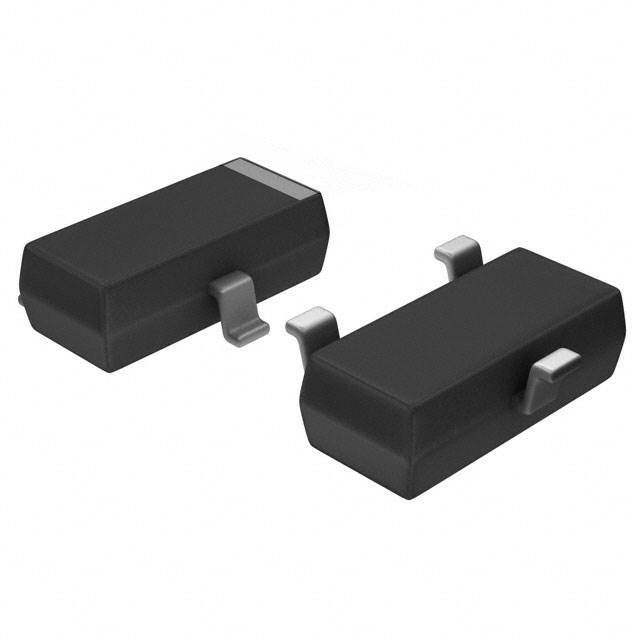

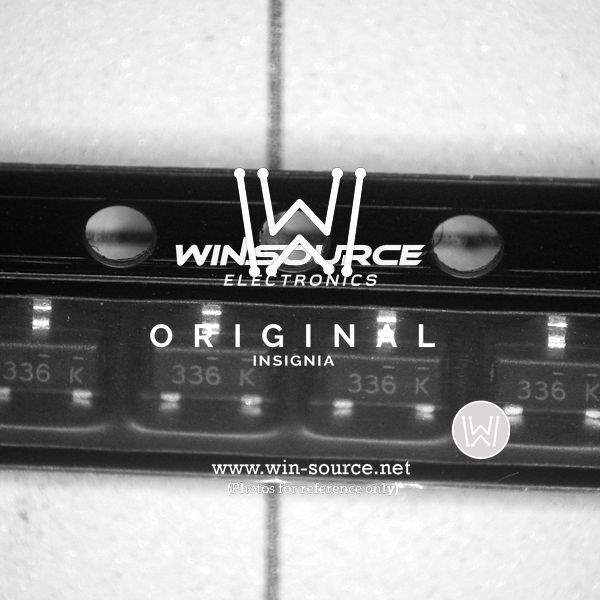

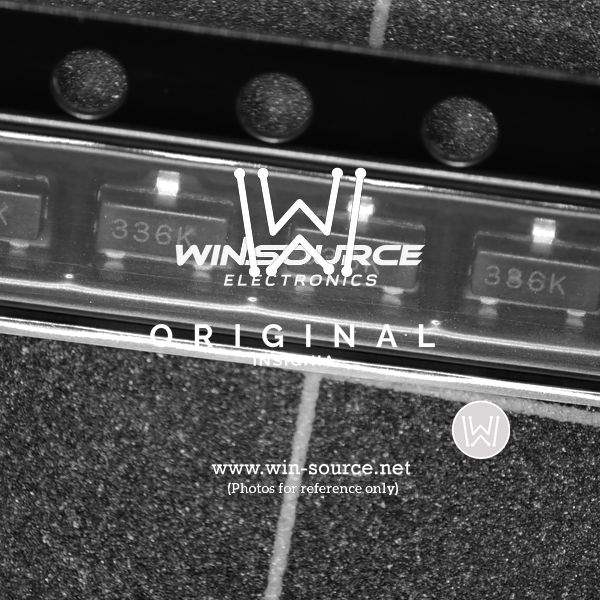

FDN336P Real Image FDN336P real image4087 FDN336P Real Image1 FDN336P Real Image2 FDN336P Real Image3
FDN336P Real Image FDN336P real image4087 FDN336P Real Image1 FDN336P Real Image2 FDN336P Real Image3
Same model may have multiple batches, images only for reference.

FDN336P

Part No FDN336P
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 1.3A SSOT3
Datasheet
FDN336P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 1.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4.5V
Gate-Source Threshold Voltage 1.5V @ 250μA
Max Gate Charge 5nC @ 4.5V
Max Input Capacitance 330pF @ 10V
Maximum Gate-Source Voltage ±8V
Power Dissipation (Max) 500mW (Ta)
Maximum Rds On at Id,Vgs 200 mOhm @ 1.3A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SuperSOT-3
Dimension TO-236-3, SC-59, SOT-23-3
Win Source Part Number 016103-FDN336P
Family Name FDN336P
Introduction Date October 27, 1997
ECCN EAR99
Country of Origin Israel, Philippines
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Power Management, Industrial
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDN336P CAD Model

Description

The Fairchild/ON Semiconductor FDN336P is a P-channel MOSFET.

  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current: 1.3A @ 25°C
  • Maximum Power Dissipation: 500mW (Ta)
  • Maximum Rds On: 200 mOhm @ 1.3A, 4.5V
  • Gate-Source Threshold Voltage: 1.5V @ 250μA
  • Maximum Gate Charge: 5nC @ 4.5V
  • Applications: Power management
  • Package: SuperSOT-3
  • Popularity: High
  • Supply and Demand: Sufficient
  • Quantity per Package: 3k pcs
