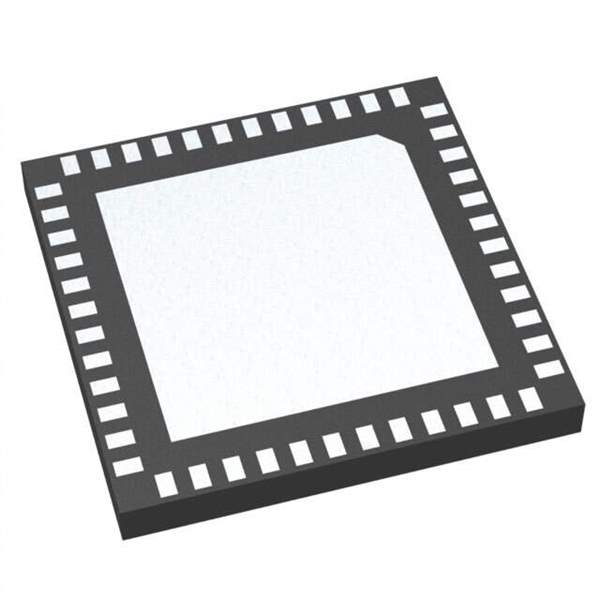

ESP32-PICO-V3-02 Real Image
Same model may have multiple batches, images only for reference.

ESP32-PICO-V3-02

Part No ESP32-PICO-V3-02
Manufacturer Espressif
Catalog RF Transceiver Modules
Description SIP MODULE WIFI BLE COMBO / Bluetooth, WiFi 802.11b/g/n, Bluetooth v4.2 Transceiver Module 2.4GHz Antenna Not Included, I-PEX Surface Mount
Datasheet
ESP32-PICO-V3-02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Espressif Systems
Series ESP32
Package Tape & Reel
RF Family/Standard Bluetooth, WiFi
Protocol 802.11b/g/n, Bluetooth v4.2
Frequency 2.4GHz
Data Rate 150Mbps
Power - Output 19.5dBm
Sensitivity -97dBm
Serial Interfaces ADC, GPIO, I²C, I²S, SDIO, SPI, PWM, UART
Antenna Type Antenna Not Included, I-PEX
Utilized IC / Part ESP32
Memory Size 8MB Flash, 2MB SRAM
Voltage - Supply 3V ~ 3.6V
Current - Receiving 111mA ~ 117mA
Current - Transmitting 205mA ~ 385mA
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 48-LFQFN Exposed Pad
MSL Level 3 (168 Hours)
ECCN 5A992C
HTSUS 8517.62.0090
Other Names 1965-ESP32-PICO-V3-02CT,1965-ESP32-PICO-V3-02DKR,1965-ESP32-PICO-V3-02TR
Standard Package 2,000
Win Source Part Number 1057992-ESP32-PICO-V3-02
Ultra Librarian 3D Model Ultra Librarian ESP32-PICO-V3-02 CAD Model

Description

The ESP32-PICO-V3-02 from Espressif is a powerful RF transceiver module that operates on Bluetooth v4.2 and 802.11b/g/n protocols. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Manufacturer: Espressif
  • Protocols: Bluetooth v4.2 and 802.11b/g/n
  • Frequency Range: 2.4GHz
  • Data Rate: 150Mbps
  • Memory Size: 8MB Flash and 2MB SRAM
  • Package: Tape and Reel
  • Mounting Type: Surface Mount Device
  • ECCN: 5A992C
  • HTSUS: 8517.62.0090
