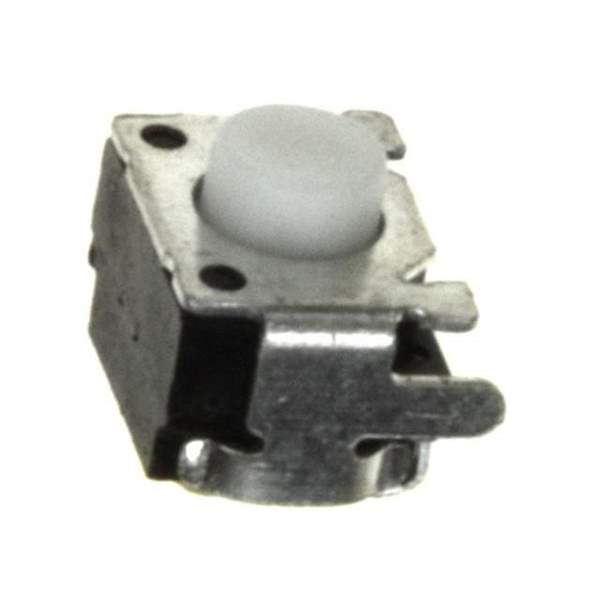

TL3340AF160QG Real Image
Same model may have multiple batches, images only for reference.

TL3340AF160QG

Part No TL3340AF160QG
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V / TL3340AF160QG - RATING: 12VDC, 50mA, CONTACT RESISTANCE: 500 MILLI OHMS MAX ,
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer E-Switch
Packaging Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating at Voltage 0.05A at 12VDC
Actuator Type Standard
Mounting Style Surface Mount, Right Angle
Actuator Length, Right Angle 3.40mm
Actuator Orientation Side Actuated
Termination Style Gull Wing
Outline 4.00mm x 3.30mm
Illumination Non-Illuminated
Operating Force 160gf
Temperature Range - Operating -35°C ~ 85°C
Actuator Material Polyphthalamide (PPA)
Switch Travel 0.20mm
Mechanical Life 100,000 Cycles
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803813-TL3340AF160QG
Ultra Librarian 3D Model Ultra Librarian TL3340AF160QG CAD Model

Description

The E-Switch TL3340AF160QG is a surface mount, right angle SPST-NO switch with a standard actuator type.

  • Actuator Material: Polyphthalamide (PPA)
  • Switch Travel: 0.20mm
  • Illumination: Non-illuminated
  • Illumination Voltage (Nominal): -
  • Mechanical Life: 100,000 cycles
  • Operating Force: 160gf
  • Temperature Range: -35°C ~ 85°C
  • Packaging: Reel
  • ECCN: EAR99
  • Manufacturer Pack Quantity: 2,000
  • Actuator Length: 3.40mm
  • Actuator Orientation: Side actuated
