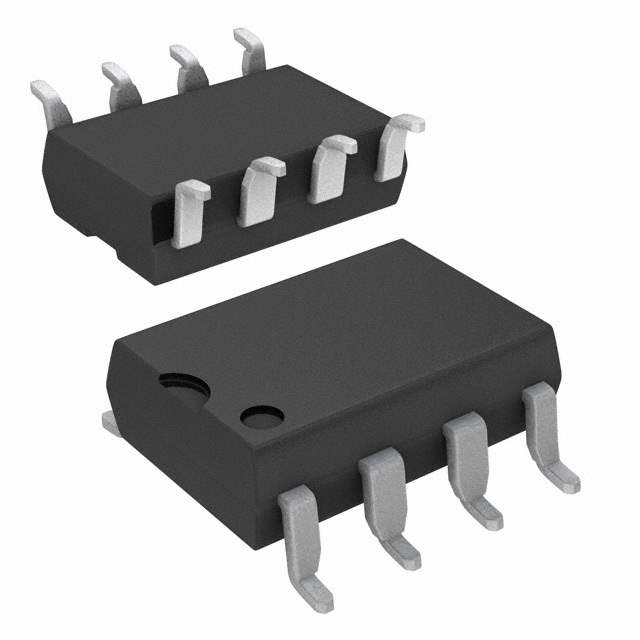

HCPL-7800A-500E Broadcom Limited HCPL-7800A-500E Real Image HCPL-7800A-500E real image4572 HCPL-7800A-500E real image4573 HCPL-7800A-500E Real Image1 HCPL-7800A-500E Real Image2 HCPL-7800A-500E Real Image3
HCPL-7800A-500E Broadcom Limited HCPL-7800A-500E Real Image HCPL-7800A-500E real image4572 HCPL-7800A-500E real image4573 HCPL-7800A-500E Real Image1 HCPL-7800A-500E Real Image2 HCPL-7800A-500E Real Image3
Same model may have multiple batches, images only for reference.

HCPL-7800A-500E

Part No HCPL-7800A-500E
Manufacturer Broadcom Limited
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description OptoCoupler 1-CH 5V 8-Pin PDIP SMD T/R / IC OPAMP ISOLATION 100KHZ 8DIPGW
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Amplifier Type Isolation
Number of Circuits 1
-3db Bandwidth 100kHz
Current - Input Bias 500nA
Voltage - Input Offset 300μV
Operating Supply Current 10.9mA
Channel Output Current 16mA
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-DIP Gull Wing
Win Source Part Number 016883-HCPL-7800A-500E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 1k pcs
Family Name HCPL-7800A
Introduction Date May 31, 2005
ECCN EAR99
Country of Origin Thailand
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HCPL-7800A-500E CAD Model

Description

The Broadcom Limited 016883-HCPL-7800A-500E is an active isolation amplifier.

  • -3db Bandwidth: 100kHz
  • Package: 8-DIP Gull Wing
  • Supply Voltage: 4.5V to 5.5V
  • Channel Output Current: 16mA
  • Operating Supply Current: 10.9mA
  • Operating Temperature: -40°C to 85°C
  • Popularity: 66%
