Overview

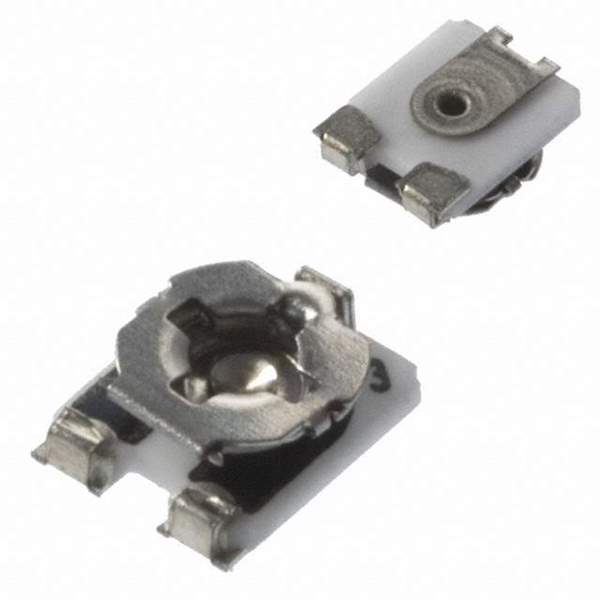

The TC33X-2-501E from Bourns Inc. is a compact surface-mount trimmer potentiometer used for fine adjustment of resistance in electronic circuits. As part of the TC33 series, it is designed for board-level calibration tasks such as offset, gain, threshold, and reference voltage trimming. The “501” suffix typically denotes a nominal resistance of 500 Ω or 500 kΩ (check the datasheet for the exact resistance value), while the “2” indicates a specific mechanical style and pin configuration within the series. This single-turn trimmer is commonly used where small size, low profile, and reliable manual adjustment are required, and is suitable for general-purpose industrial, consumer, and instrumentation applications.

Applications

• Offset and gain calibration in analog front-end and sensor interface circuits
• Reference voltage and threshold adjustment in power supplies and supervisors
• Timing and frequency trimming in oscillators and RC timing networks
• Balance and level setting in audio and signal conditioning equipment
• Calibration and tuning in test and measurement instruments
• General-purpose resistance adjustment in embedded and industrial control boards

Alternatives & Replacement

Depending on stock availability, desired resistance value, mechanical style, and layout constraints, alternative trimmer potentiometers within the same Bourns family or from other series may be suitable. In many designs, changing only the resistance value may be acceptable, while in others the footprint, power rating, and mechanical adjustment method are critical.

Recommended alternatives:

• Bourns TC33X-2-203E – Functional equivalent within the same series; similar package and characteristics, different nominal resistance value.
• Bourns TC33X-2-503E – Same TC33X family, single-turn SMD trimmer; redesign may be required to accommodate electrical differences.
• Bourns TC33X-2-502E – Same mechanical family, alternative resistance; suitable where circuit can tolerate value changes.
• Bourns TC33X-2-103E – TC33X series trimmer with a different resistance range, intended for designs willing to recalibrate component values.
• Bourns 3362P-1-104LF – Through-hole trimmer potentiometer; not footprint compatible, appropriate only for redesigned boards or adapters.
• Bourns 3006P-1-203LF / 3296W-1-203LF / 3313J-1-200E / 3362P-1-204LF / TC33X-2-104E – Other trimmer families and values that may serve as substitutes in redesigned or derivative products.

Engineering note: Always confirm the replacement part’s resistance value, tolerance, power rating, temperature coefficient, mechanical adjustment type, and especially footprint and pinout. Verify that the operating voltage, expected wiper current, and board layout are compatible before committing to a drop-in or redesigned substitution.
