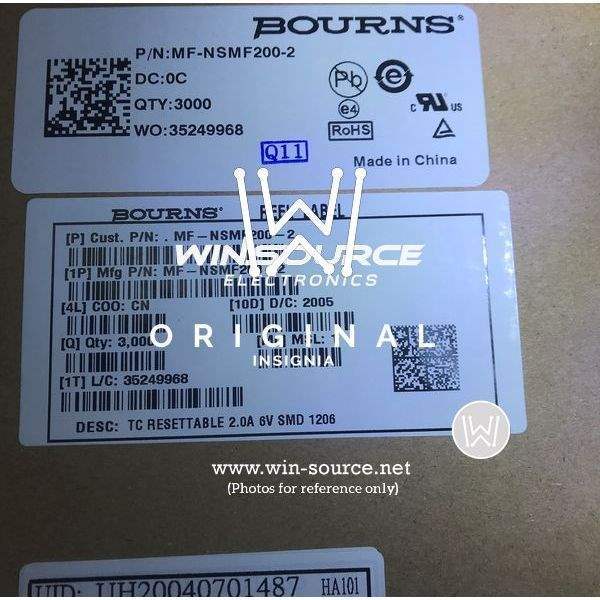

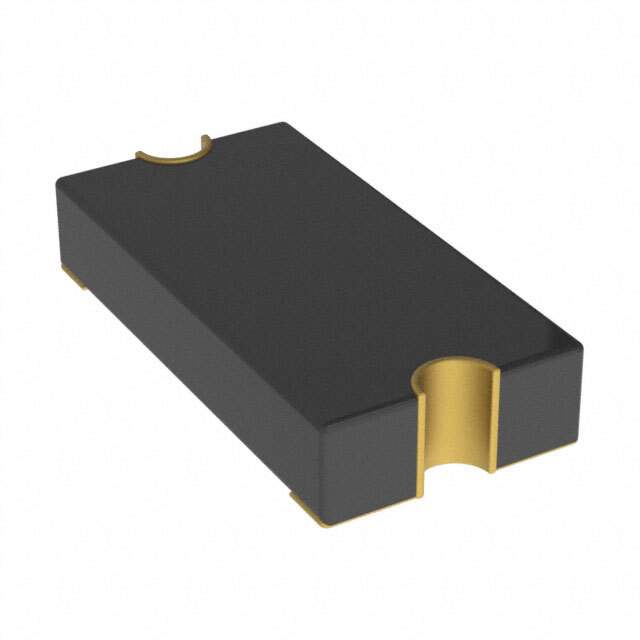

MF-NSMF200-2 Real Image MF-NSMF200-2 label picture
MF-NSMF200-2 Real Image MF-NSMF200-2 label picture
Same model may have multiple batches, images only for reference.

MF-NSMF200-2

Part No MF-NSMF200-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE RESETTABLE 2.0A HOLD SMD
Datasheet
MF-NSMF200-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 6V
Current - Max 100A
Current - Hold (Ih) (Max) 2A
Current - Trip (It) 4A
Time to Trip 1s
Resistance - Initial (Ri) (Min) 20 mOhm
Resistance - Post Trip (R1) (Max) 85 mOhm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.128" L x 0.063" W (3.25mm x 1.60mm)
Thickness (Max) 0.063" (1.60mm)
Approvals cURus, TUV
Win Source Part Number 003398-MF-NSMF200-2
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Communications & Networking
Ultra Librarian 3D Model Ultra Librarian MF-NSMF200-2 CAD Model

Description

The Bourns Inc. 003398-MF-NSMF200-2 is a polymeric type circuit protection component.

  • Approvals: cURus and TUV
  • Ratings: AEC-Q200
  • Mounting Type: SMD (SMT)
  • Thickness: 0.063" (1.60mm)
  • Maximum Voltage: 6V
  • Maximum Current: 100A
  • Current Hold (Ih) (Max): 2A
  • Current Trip (It): 4A
  • Time to Trip: 1s
  • Used in: communications and networking applications
  • Operating Temperature Range: -40°C to 85°C
  • Dimension: 0.128" L x 0.063" W (3.25mm x 1.60mm)
  • Initial Resistance (Ri) (Min): 20 mOhm
  • Post-Trip Resistance (R1) (Max): 85 mOhm
  • Supply and demand status: sufficient
