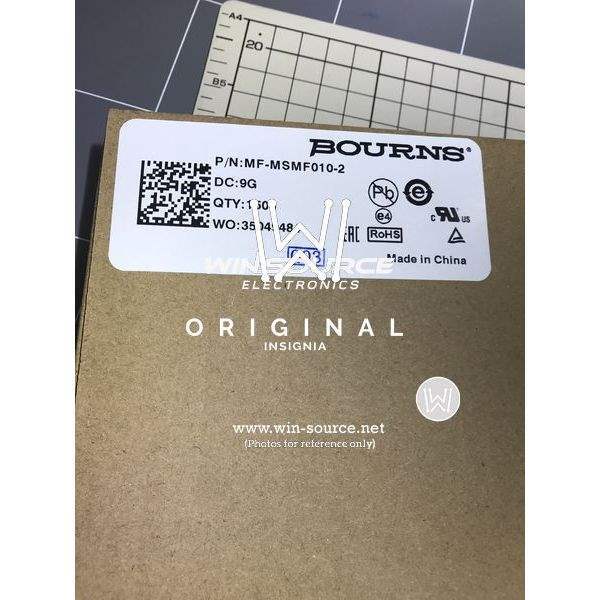

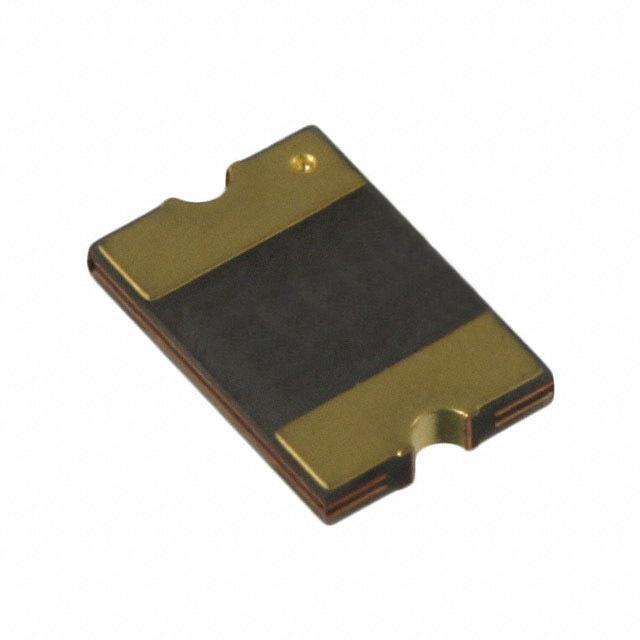

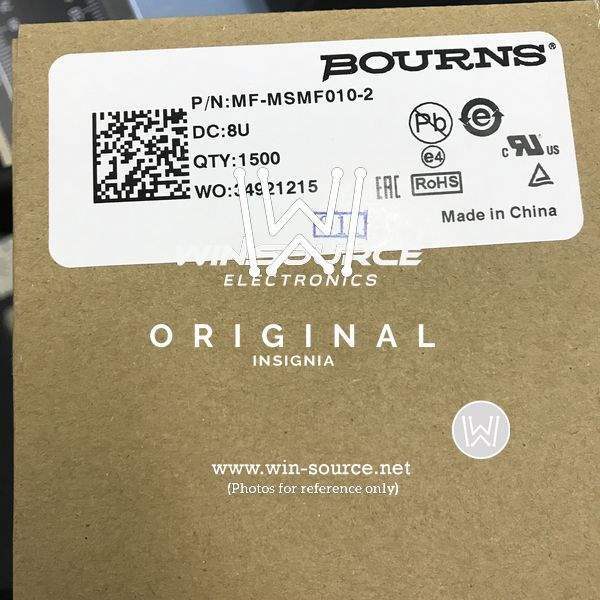

MF-MSMF010-2 Bourns Inc. MF-MSMF010-2 Real Image MF-MSMF010-2 label picture 2 MF-MSMF010-2 label picture 3
MF-MSMF010-2 Bourns Inc. MF-MSMF010-2 Real Image MF-MSMF010-2 label picture 2 MF-MSMF010-2 label picture 3
Same model may have multiple batches, images only for reference.

MF-MSMF010-2

Part No MF-MSMF010-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESETTABLE .10A 60V 1812
Datasheet
MF-MSMF010-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Max) 100mA
Current - Trip (It) 300mA
Time to Trip 1.5s
Resistance - Initial (Ri) (Min) 700 mOhm
Resistance - Post Trip (R1) (Max) 15 Ohm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max) 0.043" (1.10mm)
Approvals cURus, TUV
Win Source Part Number 023186-MF-MSMF010-2
Family Name MF-MSMF
Introduction Date August 29, 2006
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Automotive, Safety
Ultra Librarian 3D Model Ultra Librarian MF-MSMF010-2 CAD Model

Description

The Bourns Inc. MF-MSMF010-2 is a polymeric type fuse with AEC-Q200 ratings.

  • Application: automotive safety applications
  • Mounting Style: SMD (SMT)
  • Package: reel
  • Temperature Range: -40°C to 85°C
  • Current Rating: 40A
  • Voltage Rating: 60V
  • Status: active
  • Compliance: halogen-free compliant
  • Part Number Series: MF-MSMF
