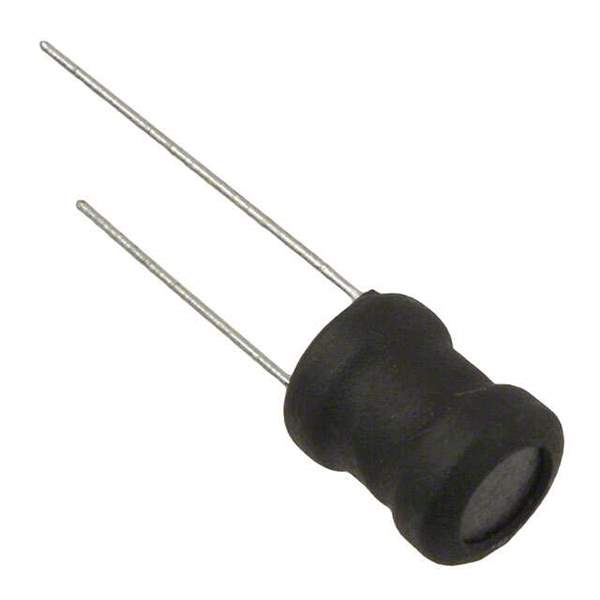

RLB0914-471KL Real Image
Same model may have multiple batches, images only for reference.

RLB0914-471KL

Part No RLB0914-471KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 470UH 560MA 1.3 OHM TH / 470 µH Unshielded Drum Core, Wirewound Inductor 560 mA 1.3Ohm Max Radial, Vertical Cylinder
Datasheet
RLB0914-471KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Bulk
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 µH
Tolerance ±10%
Current Rating (Amps) 560 mA
Current - Saturation (Isat) 1A
Shielding Unshielded
DC Resistance (DCR) 1.3Ohm Max
Q @ Freq 20 @ 796kHz
Frequency - Self Resonant 1.8MHz
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 796 kHz
Mounting Through Hole
Case / Package Radial, Vertical Cylinder
Size / Dimension 0.343" Dia (8.70mm)
Height - Seated (Max) 0.512" (13.00mm)
Base Product Number RLB0914
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number RLB0914471KL,-RLB0914-471KL
Standard Package 200
Win Source Part Number 1327965-RLB0914-471KL
Ultra Librarian 3D Model Ultra Librarian RLB0914-471KL CAD Model

Description

The RLB0914 series is a fixed inductor from Bourns designed for through-hole applications.

  • Design: Drum core, wirewound design
  • Inductance: 470 µH
  • Tolerance: ±10%
  • Current Rating: 560mA
  • DC Resistance: 1.3Ohm Max
  • Package: Bulk
  • Size: 0.343" Dia (8.70mm)
  • Height: 0.512" (13.00mm) when seated
  • Ideal for: Use in various applications, including power supplies, automotive systems, and telecommunications
