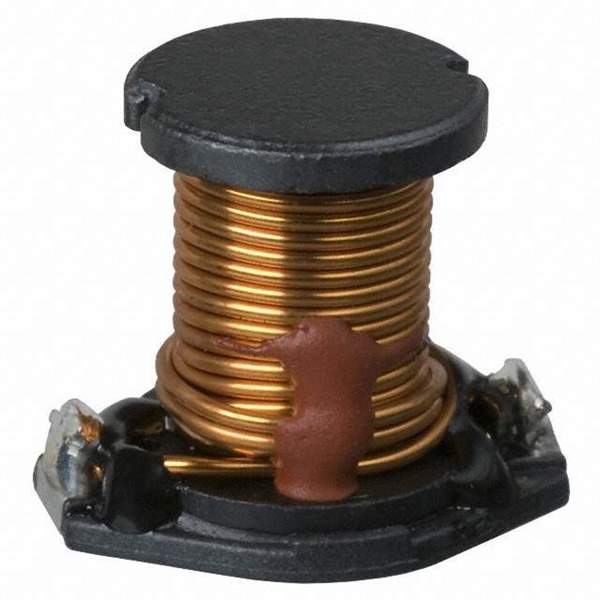

PM3340-221M-RC Real Image
Same model may have multiple batches, images only for reference.

PM3340-221M-RC

Part No PM3340-221M-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 220UH 700MA 440MOHM SM / 220 µH Unshielded Drum Core, Wirewound Inductor 700 mA 440mOhm Max Nonstandard
Datasheet
PM3340-221M-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 µH
Tolerance ±20%
Current Rating (Amps) 700 mA
Current - Saturation (Isat) 1.6A
Shielding Unshielded
DC Resistance (DCR) 440mOhm Max
Temperature Range - Operating -55°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.512" L x 0.402" W (13.00mm x 10.20mm)
Height - Seated (Max) 0.453" (11.50mm)
Base Product Number PM3340
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number M8591TR,PM3340221MRC,M8591CT,M8591DKR
Standard Package 225
Win Source Part Number 1327791-PM3340-221M-RC
Ultra Librarian 3D Model Ultra Librarian PM3340-221M-RC CAD Model

Description

The PM3340-221M-RC is a fixed inductor from Bourns Inc. that is perfect for surface mount applications.

  • Type: Drum Core, Wirewound
  • Mounting Type: Surface Mount
  • Size: 0.512 inches x 0.402 inches
  • Height (Seated): 0.453 inches
  • Inductance: 220 µH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • DC Resistance: 440mOhm Max
  • Package: Nonstandard
  • Operating Temperature: -55°C to 105°C
  • ROHS3 Compliant: Yes
  • Standard Package: 225
  • Shielding: Unshielded
