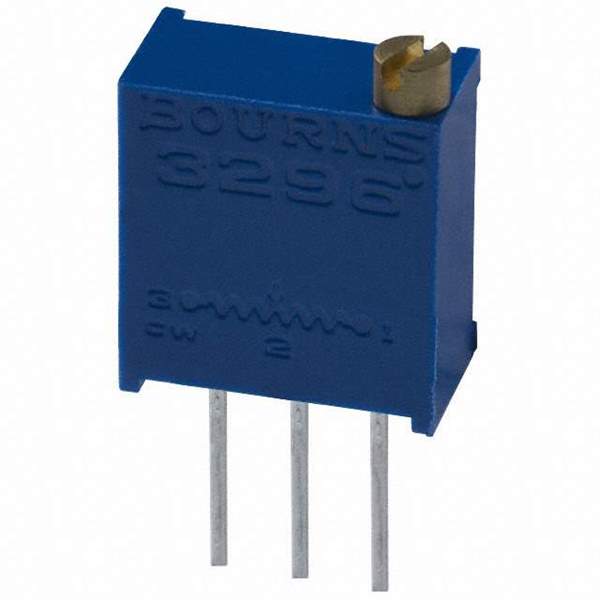

3296W-1-501LF Real Image
Same model may have multiple batches, images only for reference.

3296W-1-501LF

Part No 3296W-1-501LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500 OHM 0.5W PC PIN
Datasheet
3296W-1-501LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot 3296 - Sealed
Packaging Tube
Resistance (Ohms) 500
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 25
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Style Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.375" x 0.190" Face x 0.395" H (9.53mm x 4.83mm x 10.03mm)
Win Source Part Number 763228-3296W-1-501LF
Family Name 3296
Introduction Date September 25, 1997
ECCN EAR99
Country of Origin Costa Rica
Halogen Free Compliant
Estimated EOL Date 2025
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Consumer Electronics, Portable Devices, Power Management
Ultra Librarian 3D Model Ultra Librarian 3296W-1-501LF CAD Model

Description

Bourns Inc. Trimpot 3296 - Sealed is a through-hole potentiometer that comes with a PC pin termination style.

  • Termination Style: PC Pin
  • Resistance: 500 ohms
  • Power Rating: 0.5W
  • Adjustment Type: Top
  • Number of Turns: 25
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Resistive Material: Cermet
  • Shape: Rectangular
  • Dimensions: 0.375" x 0.190" Face x 0.395" H (9.53mm x 4.83mm x 10.03mm)
  • Applications: Industrial, consumer electronics, portable devices, and power management
  • Supply and Demand Status: Limited
  • Manufactured in: Costa Rica
  • EOL Date: Estimated 2025
