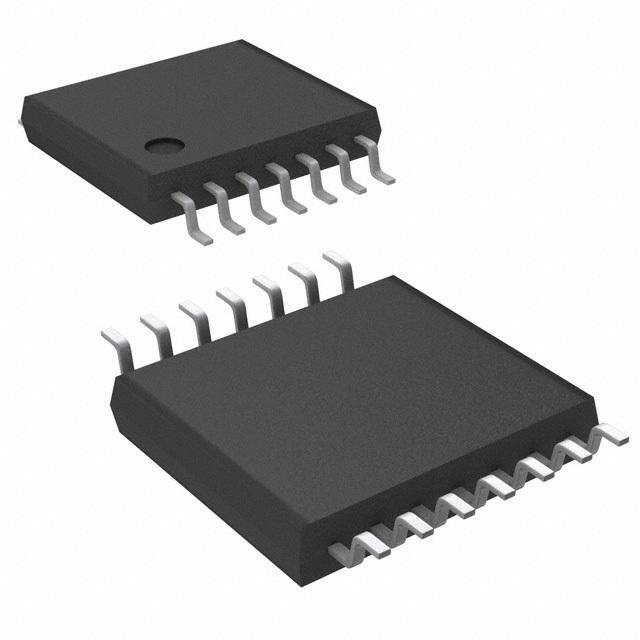

AS5048A-HTSP ams AS5048A-HTSP Real Image
AS5048A-HTSP ams AS5048A-HTSP Real Image
Same model may have multiple batches, images only for reference.

AS5048A-HTSP

Part No AS5048A-HTSP
Manufacturer ams
Catalog Position Sensors - Angle, Linear Position Measuring
Description Rotary Position Sensor 5.5V/3.6V Digital Output 14-Pin TSSOP T/R / IC ENCODER ROTARY 14-TSSOP
Datasheet
AS5048A-HTSP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer ams
Status Active
For Measuring Angle
Technology Hall Effect
Rotation Angle - Electrical, Mechanical 0° to 360°, Continuous
Output PWM, SPI
Actuator Type External Magnet Not Included
Supply Voltage - Operating 3 V to 3.6 V, 4.5 V to 5.5 V
Mounting SMD (SMT)
Termination Style SMD (SMT) Tab
Temperature Range - Operating -40°C to 150°C
Win Source Part Number 59664-AS5048A-HTSP
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 4,500
Family Name AS5048A
Introduction Date April 10, 2012
ECCN EAR99
Country of Origin Austria
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian AS5048A-HTSP CAD Model

Description

AS5048A-HTSP Overview

The AS5048A-HTSP is an advanced 14-bit rotary position sensor ideal for high-resolution measurements in various applications. Its SPI and I2C interfaces offer seamless integration with modern systems.

  • Applications:
    • Robotics
    • Servo Motor Control
    • Medical Devices
  • Features and Benefits:
    • 14-bit resolution for superior precision
    • Non-contact magnetic sensing for reduced wear
    • Versatile communication options with SPI and I2C
  • Additional Details:
    • Operating temperature range from -40°C to +150°C
    • Supply voltage range of 3.3V to 5V
