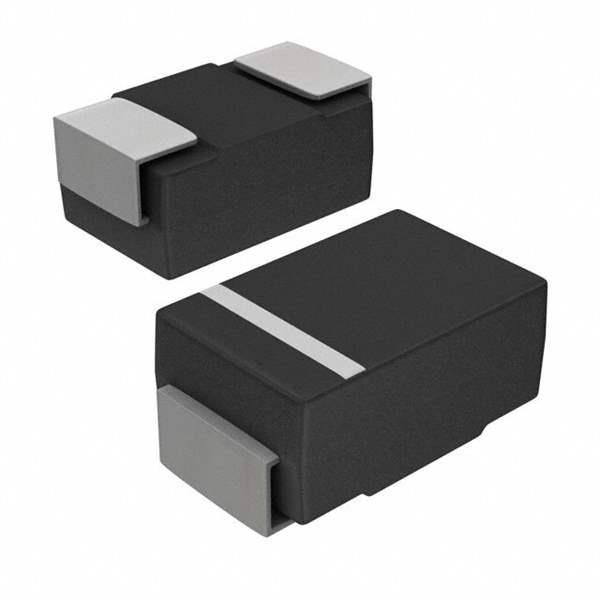

SMAJ20CA/TR13 Yageo
Same model may have multiple batches, images only for reference.

SMAJ20CA/TR13

Part No SMAJ20CA/TR13
Manufacturer Yageo
Catalog TVS - Diodes
Description TVS DIODE 20VWM 32.4VC DO214AC / 32.4V Clamp 12.3A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
Datasheet
SMAJ20CA/TR13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr YAGEO
Series SMAJ
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 20V
Voltage - Breakdown (Min) 22.2V
Voltage - Clamping (Max) @ Ipp 32.4V
Current - Peak Pulse (10/1000µs) 12.3A
Power - Peak Pulse 400W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency -
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1361851-SMAJ20CA/TR13
Ultra Librarian 3D Model Ultra Librarian SMAJ20CA/TR13 CAD Model

Description

The SMAJ20CA/TR13 is a Zener TVS diode from YAGEO's SMAJ series.

  • Series: SMAJ
  • Type: Zener
  • Application: General Purpose
  • Voltage - Reverse Standoff (Typ): 20V
  • Voltage - Breakdown (Min): 22.2V
  • Voltage - Clamping (Max) @ Ipp: 32.4V @ 12.3A
  • Current - Peak Pulse (10/1000µs): 12.3A
  • Power - Peak Pulse: 400W
  • Polarization: Bidirectional
  • Mounting Type: Surface Mount
  • Moisture Resistant: Yes
  • Status: Active
