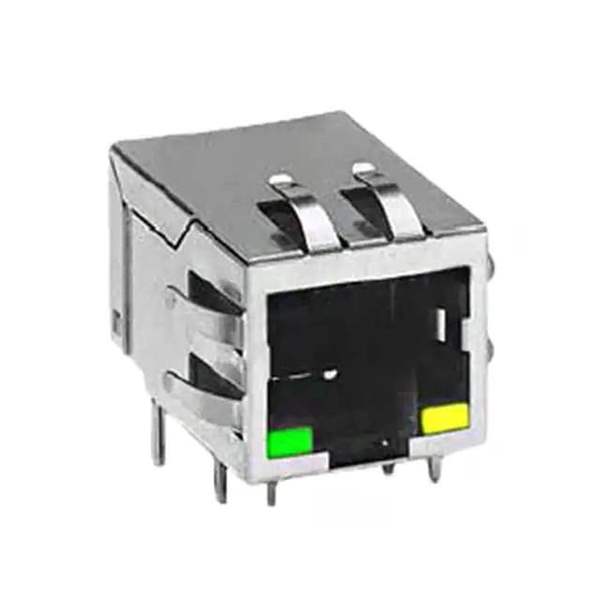

The 876163-J1B1211CCD is a modular connector jack with magnetics manufactured by WIZnet.

• Manufacturer: WIZnet
• Product Name: 876163-J1B1211CCD
• Category: Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
• Feature: Board guide
• Connector Type: RJ45
• Row: Single
• Termination: Solder
• Contact Finish: Gold
• Contact Finish Thickness: 6.00μin (0.152μm)
• Package Type: Bulk
• Contact Material: Phosphor brass
• Height Above Board: 0.526" (13.36mm)
• Shielding: Shielded with EMI finger
• Housing Material: Thermoplastic
• Applications: 10/100 Base-T and AutoMDIX
• Angle Orientation: 90° angle (right)
• Port: Single port
• LED Color: Green - yellow
• Number of Cores per Jack: 4
• Tab Direction: Down
• Mounting: Through-hole
• Operating Temperature Range: -40°C to 85°C
• Status: Active
