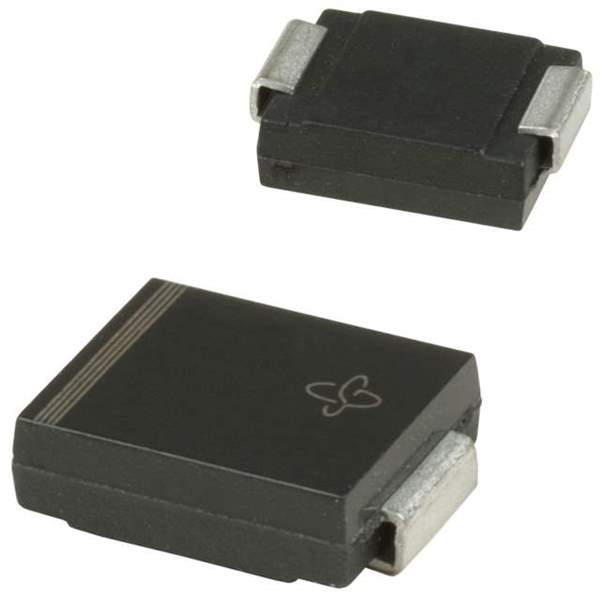

SM15T36A-E3/57T Real Image
Same model may have multiple batches, images only for reference.

SM15T36A-E3/57T

Part No SM15T36A-E3/57T
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 30.8VWM 49.9VC SMC
Datasheet
SM15T36A-E3/57T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 30.8V
Minimum Breakdown Voltage 34.2V
Max Clamping Voltage 49.9V
Peak Pulse Current(Ippm) 30A
Power Dissipation - Pd 1500W (1.5kW)
Applications General Purpose
Temperature Range - Operating -65°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DO-214AB (SMCJ)
Win Source Part Number 1096934-SM15T36A-E3/57T
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SM15T36A-E3/57T CAD Model

Description

This is a zener diode manufactured by Vishay. The Win Source Part Number for this product is 1096934-SM15T36A-E3/57T.

  • Channel: Unidirectional
  • STAND-OFF Voltage: 30.8V
  • Minimum Breakdown Voltage: 34.2V
  • Maximum Clamping Voltage: 49.9V
  • Peak Pulse Current: 30A
  • Power Dissipation: 1500W (1.5kW)
  • Temperature Range: -65°C to 150°C (TJ)
  • Mounting: SMD (SMT)
  • Packaging: Reel
  • Commonly Used In: Circuit protection applications
  • Popularity: Medium
