Same model may have multiple batches, images only for reference.

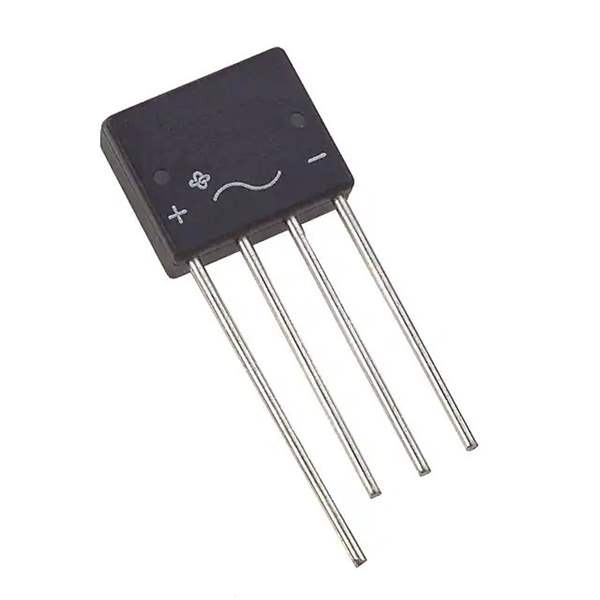

KBL10-E4/51

Name: KBL10-E4/51
Brand: Vishay
SKU: 1368101
Availability: InStock
Rating: 4.94 (5 reviews)

Get a Quote

Part No	KBL10-E4/51
Manufacturer	Vishay
Catalog	Bridge Rectifiers
Description	BRIDGE RECT 1PHASE 1KV 4A KBL
Datasheet	KBL10-E4/51 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr	Vishay General Semiconductor - Diodes Division
Series	-
Package	Bulk
Product Status	Active
Diode Type	Single Phase
Technology	Standard
Current - Reverse Leakage @ Vr	5 µA @ 1000 V
Temperature Range - Operating	-50°C ~ 150°C (TJ)
Mounting Type	Through Hole
Base Product Number	KBL10
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1368101-KBL10-E4/51
Supplier Device Package	KBL
Package / Case	4-SIP, KBL
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 4 A
Current - Average Rectified (Io)	4 A
Voltage - Peak Reverse (Max)	1 kV
Ultra Librarian 3D Model	Ultra Librarian KBL10-E4/51 CAD Model

Description

The 1368101-KBL10-E4/51 is a bridge rectifier diode from Vishay General Semiconductor - Diodes Division.

Package / Case: 4-SIP
Base Product Number: KBL10
Temperature Range: -50°C to 150°C
Average Rectified Current: 4 A
Voltage Forward Drop: 1.1 V @ 4 A
Current Reverse Leakage @ Vr: 5 µA @ 1000 V
Diode Type: Single-Phase
Voltage Peak Reverse: 1 kV
RoHS: Yes
REACH Status: Unaffected
Product Status: Active
Mounting Type: Through Hole
