The TPS22810DBVT is a compact, high-performance, single-channel load switch from Texas Instruments (TI), designed to effectively manage power distribution in a wide array of electronic systems. This load switch provides a simple and efficient solution for turning on and off power to subsystems and peripherals, enhancing the overall power management strategy of the application it serves.

Key Features

• Input Voltage Range: The TPS22810DBVT operates over a broad input voltage range from 1.5V to 5.5V, making it versatile for various low-voltage applications.
• Ultra-Low On-Resistance: It boasts an ultra-low on-resistance (RON) of typically 28 mΩ at 5V, which minimizes power loss and improves efficiency during operation.
• Current Limiting: The device incorporates an adjustable current limit feature, which protects the power source and load by preventing excessive current from flowing through the switch.
• Quick Output Discharge: An integrated quick output discharge (QOD) function ensures the output capacitance is discharged rapidly when the switch is turned off, thus avoiding unwanted power residue in the system.
• Controlled Slew Rate: The TPS22810DBVT provides a controlled slew rate to mitigate inrush current, reducing the likelihood of voltage droop on the power supply rail during turn-on.

Applications

The device is suitable for a variety of applications, including but not limited to:

• Smartphones, Tablets, and Wearable Devices
• Portable and Battery-powered Equipment
• Industrial and Medical Instruments
• Point-of-Sale (POS) Machines
• Networking and Telecom Infrastructure

Package and Reliability

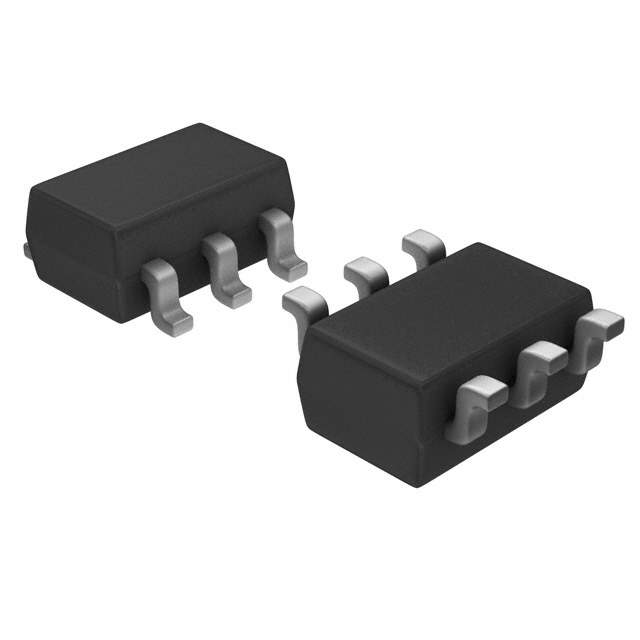

The TPS22810DBVT comes in a compact 6-pin SOT-23 package, which is ideal for space-constrained applications. The device is characterized for operation over the free-air temperature range of –40°C to 85°C, ensuring reliability across various environmental conditions.

Conclusion

With its robust feature set, including low on-resistance, adjustable current limiting, and quick output discharge, the TPS22810DBVT from Texas Instruments is an excellent choice for designers looking to improve power management and extend battery life in their products. Its versatility and reliability make it an essential component for modern electronic designs.
