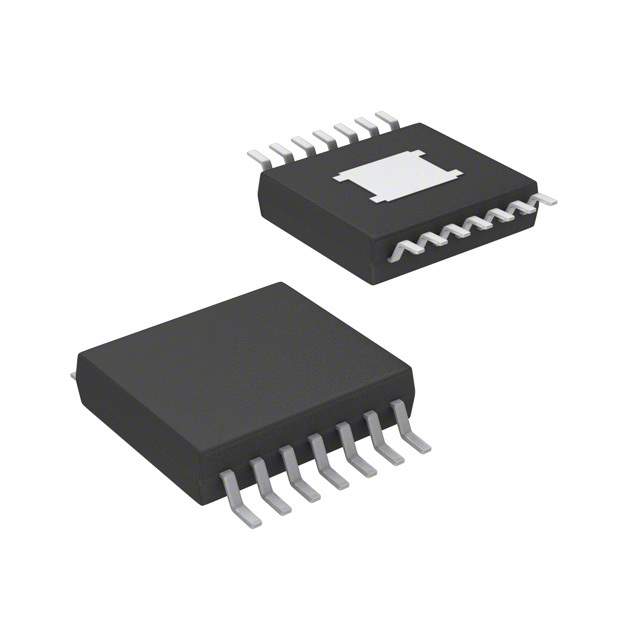

LM3150MH/NOPB Real Image LM3150MH/NOPB Real Image1 LM3150MH/NOPB Real Image2 LM3150MH/NOPB Real Image3 LM3150MH/NOPB Real Image4 LM3150MH/NOPB Real Image5 LM3150MH/NOPB Real Image6 LM3150MH/NOPB Real Image7
LM3150MH/NOPB Real Image LM3150MH/NOPB Real Image1 LM3150MH/NOPB Real Image2 LM3150MH/NOPB Real Image3 LM3150MH/NOPB Real Image4 LM3150MH/NOPB Real Image5 LM3150MH/NOPB Real Image6 LM3150MH/NOPB Real Image7
Same model may have multiple batches, images only for reference.

LM3150MH/NOPB

Part No LM3150MH/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR BUCK 14TSSOP
Datasheet
LM3150MH/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Output Type Transistor Driver
Purpose Step-Down
Topology Buck
Number of Outputs 1
Output Phases 1
Supply Voltage - Operating 6 V to 42 V
Frequency - Switching Up to 1MHz
Synchronous Rectifier Yes
Clock Sync No
Control Features Current Limit, Enable, On Time Control, Soft Start
Temperature Range - Operating -40°C to 125°C (TJ)
Case / Package 14-HTSSOP
Win Source Part Number 071185-LM3150MH/NOPB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM3150MH/NOPB CAD Model

Description

The LM3150MH/NOPB is a high-performing, simple, and versatile controller device from the esteemed manufacturer, Texas Instruments.

  • Input Voltage Range: 6V to 42V
  • Switching Frequency: Programmable up to 1 MHz
  • Maximum Load Current: 12A
  • Protection: Over-voltage, under-voltage, and thermal shutdown protection
  • Package: 20-pin HTSSOP PowerPAD™ package
