2290741-1

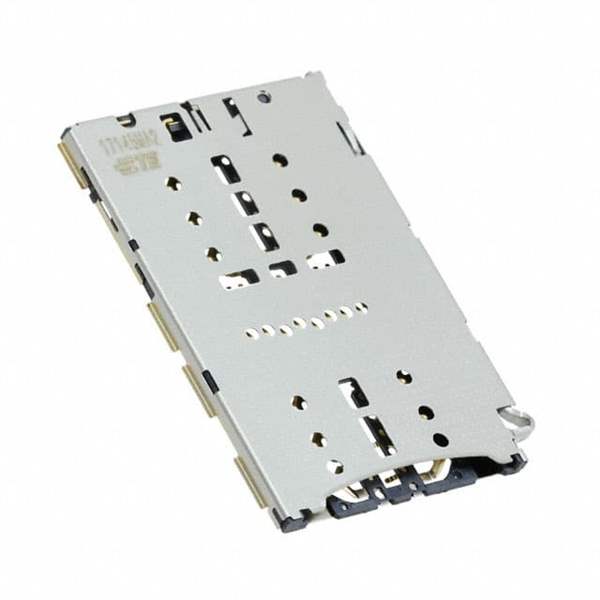

Same model may have multiple batches, images only for reference.

2290741-1

Part No 2290741-1
Manufacturer TE Connectivity
Catalog Memory Connectors - PC Card Sockets
Description CONN COMBO CARD PUSH/PULL R/A / 20 Position Card Connector Combo - microSD?, NANO SIM Surface Mount, Right Angle Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Memory Connectors - PC Card Sockets
Mfr TE Connectivity
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Obsolete
Card Type Combo - microSD™, NANO SIM
Number of Positions 20
Connector Type Connector
Insertion, Removal Method Push In, Pull Out
Mounting Type Surface Mount, Right Angle
Features Switch
Height Above Board 0.056" (1.42mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Base Product Number 2290741
Standard Package 1,200 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854632-2290741-1
Ultra Librarian 3D Model Ultra Librarian 2290741-1 CAD Model

Description

The 854632-2290741-1 electronic component from TE Connectivity is a PC Card socket connector.

  • Positions: 20
  • Switch: Yes
  • Mounting Type: Surface Mount, Right Angle
  • Height Above Board: 0.056" (1.42mm)
  • Card Type: Combo microSD™ and NANO SIM
  • Insertion/Removal Method: Push In and Pull Out
  • Mounting Feature: Normal, Standard - Top
  • Contact Finish: Gold
  • Package Quantity: 1,200 pieces
  • REACH Status: Vendor Undefined
