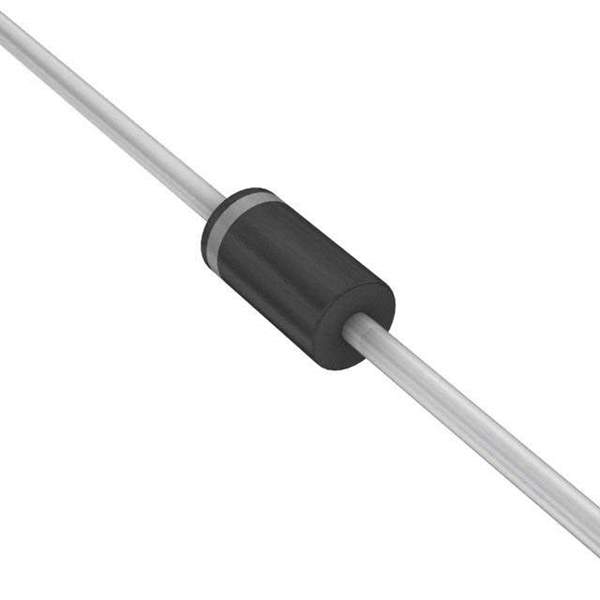

1N4007G A0G

Part No 1N4007G A0G
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1KV 1A DO204AL / Diode Standard 1000 V 1A Through Hole DO-204AL (DO-41)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Taiwan Semiconductor Corporation
Package Cut Tape (CT),Tape & Box (TB)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1 V @ 1 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Capacitance @ Vr, F 10pF @ 4V, 1MHz
Mounting Type Through Hole
Package / Case DO-204AL, DO-41, Axial
Supplier Device Package DO-204AL (DO-41)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number 1N4007
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 1N4007GA0GCT,1N4007G A0GCT,1N4007G A0GTB-ND,1N4007G A0GCT-ND,1N4007G A0GTB,1N4007GA0GTB
Standard Package 3,000
Win Source Part Number 957900-1N4007G A0G
Ultra Librarian 3D Model Ultra Librarian 1N4007G A0G CAD Model

Description

1N4007G A0G from Taiwan Semiconductor is a general-purpose single rectifier diode commonly selected for straightforward AC-to-DC conversion, reverse-polarity protection, power supply input stages, and basic flyback or freewheeling protection in low-complexity designs. Engineers often use devices in the 1N4007 family when they need a familiar, broadly supported rectifier for consumer electronics, adapters, household appliances, industrial control boards, and maintenance replacement work. Its value is typically in dependable everyday rectification rather than high-speed switching or specialized power optimization. For procurement and design review, this part is best positioned as a standard catalog component that may fit legacy and new low-frequency rectification needs, provided the official datasheet confirms suitability. Lifecycle status information is currently not available, so sourcing teams should verify long-term availability with the manufacturer or authorized channels before locking it into production. RoHS compliance information is also not available here and should be confirmed through current manufacturer documentation.
