The SM2T18A from STMicroelectronics is a high-quality Transil™ diode designed to provide robust protection for sensitive electronics. This transient voltage suppressor (TVS) diode is engineered to shield against voltage spikes and surges, ensuring the safety and longevity of your electronic components.

Key Features

• Stand-off Voltage: The device has a stand-off voltage of 18V, making it suitable for a wide range of applications that require voltage regulation and transient protection.
• Peak Pulse Power: It can handle a peak pulse power of 600W (10/1000μs), providing effective protection against short-duration power surges.
• Low Clamping Voltage: The low clamping voltage ensures that even when a surge occurs, the voltage presented to the protected component remains within safe limits, preventing damage.
• Fast Response Time: With its rapid response to transient over-voltages, it immediately clamps the excess voltage, protecting the circuit without delay.
• High Reliability: Manufactured by STMicroelectronics, a leader in semiconductor solutions, the SM2T18A is built to meet high reliability standards.
• Junction Temperature: The operating junction temperature range is from -55°C to +150°C, accommodating a wide range of environmental conditions.

Applications

The SM2T18A is versatile and can be used in various applications, including:

• Power supply protection
• Industrial systems
• Consumer electronics
• Telecommunication devices
• Computer systems

Package and Installation

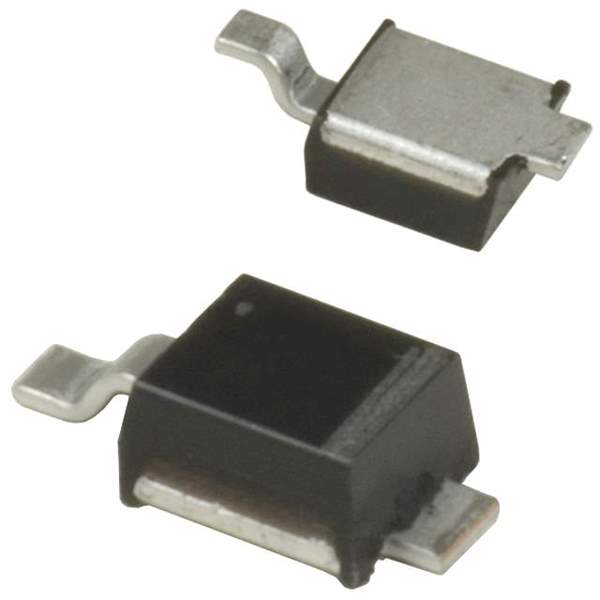

This component comes in an SMB (DO-214AA) package, which is compact and suitable for surface-mount technology (SMT), allowing for efficient use of PCB space and easier integration into a wide variety of electronic assemblies.

Conclusion

The SM2T18A TVS diode is an essential component for any design engineer looking to enhance circuit protection against voltage transients. Its combination of high power absorption capability and fast response time makes it a reliable choice for safeguarding sensitive electronic equipment.
