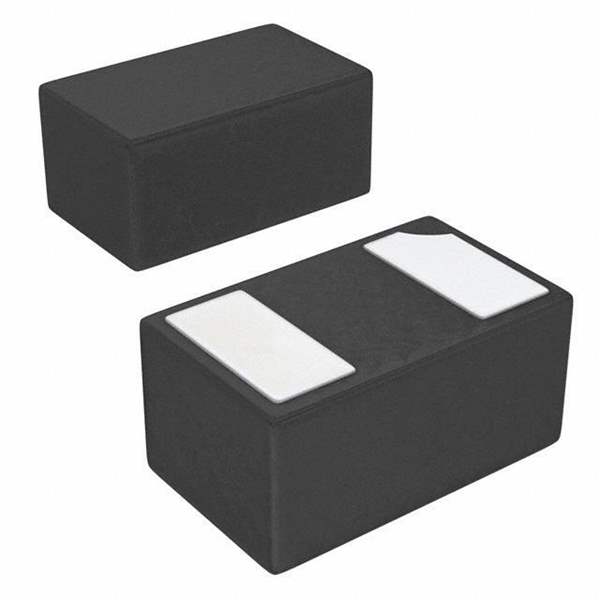

RCLAMP0521P.TCT Semtech Corporation
Same model may have multiple batches, images only for reference.

RCLAMP0521P.TCT

Part No RCLAMP0521P.TCT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 5VWM 25VC 2SLP
Datasheet
RCLAMP0521P.TCT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Not For New Designs
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 25V
Peak Pulse Current(Ippm) 4A (8/20μs)
Power Dissipation - Pd 100W
Applications General Purpose
Capacitance @ Frequency 0.3pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SLP1006P2
Win Source Part Number 027238-RCLAMP0521P.TCT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian RCLAMP0521P.TCT CAD Model

Description

The RCLAMP0521P.TCT is a zener type bidirectional channel circuit protection diode manufactured by Semtech Corporation.

  • Application: general purpose applications
  • Capacitance: 0.3pF @ 1MHz
  • Stand-off Voltage: 5V
  • Minimum Breakdown Voltage: 6V
  • Maximum Clamping Voltage: 25V
  • Peak Pulse Current: 4A (8/20μs)
  • Package: SLP1006P2
  • Mounting: SMD (SMT) technology
  • Supply and Demand Status: sufficient
