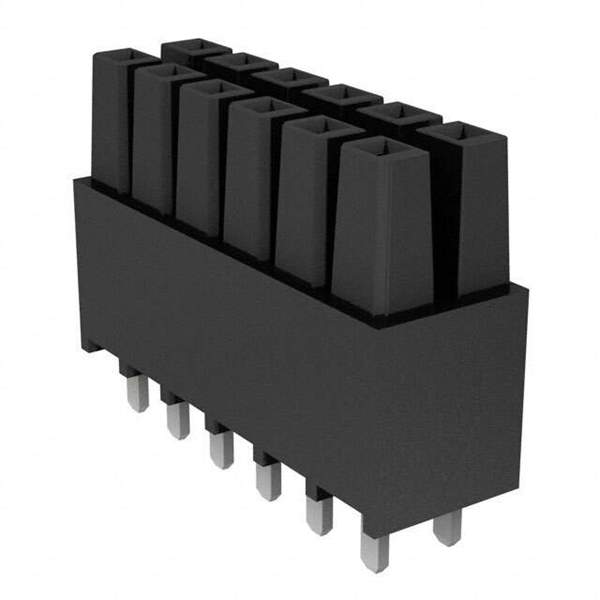

IPS1-106-01-S-D Real Image
Same model may have multiple batches, images only for reference.

IPS1-106-01-S-D

Part No IPS1-106-01-S-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description .100 DOUBLE ROW SHROUDED SOCKET
Datasheet
IPS1-106-01-S-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Packaging Tube/Rail
Status Active
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 12
Number of Positions Loaded All
Pitch - Mating 2.54mm
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Insulation Color Black
Insulation Height 0.335" (8.51mm)
Contact Length - Post 0.100" (2.54mm)
Temperature Range - Operating -55°C to 125°C
Contact Finish - Post Tin
Voltage Rating 775VAC, 1095VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Win Source Part Number 1046078-IPS1-106-01-S-D
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IPS1-106-01-S-D CAD Model

Description

The IPS1-106-01-S-D is a connector manufactured by Samtec Inc.

  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Number of Positions: 12
  • Number of Rows: 2
  • Pitch: 2.54mm
  • Mounting Type: Through Hole
  • Fastening Type: Push-Pull
  • Voltage Rating: 775VAC, 1095VDC
  • Operating Temperature: -55°C to 125°C
