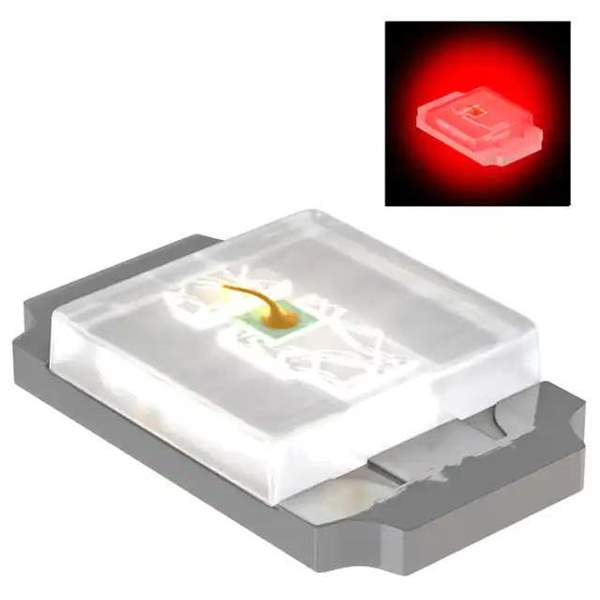

SML-P12UTT86 Real Image
Same model may have multiple batches, images only for reference.

SML-P12UTT86

Part No SML-P12UTT86
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED RED CLEAR 1006 SMD
Datasheet
SML-P12UTT86 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Rohm Semiconductor
Series PicoLED™
Package Tape & Reel
Product Status Not For New Designs
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 85mcd
Lens Style Square with Flat Top
Lens Size 0.60mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Mounting Type Surface Mount
Wavelength - Dominant 620nm
Package / Case 0402 (1006 Metric)
Supplier Device Package 1006 (0402)
Size / Dimension 1.00mm L x 0.60mm W
Height (Max) 0.25mm
Base Product Number SML-P12
Standard Package 10,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 669348-SML-P12UTT86
Ultra Librarian 3D Model Ultra Librarian SML-P12UTT86 CAD Model

Description

The 669348-SML-P12UTT86 is a red LED indication product in the category of optoelectronics.

  • Series: PicoLED™
  • Manufacturer: Rohm Semiconductor
  • Package: Tape and reel
  • Standard Package Quantity: 10,000 pieces
  • Length: 1.00mm
  • Width: 0.60mm
  • Forward Voltage: 2V
  • Test Current: 20mA
  • Dominant Wavelength: 620nm
  • Millicandela Rating: 85mcd
  • Mounting: Surface mount
  • Package: 0402 (1006 Metric)
  • ECCN: Compliant
  • REACH Regulations: Unaffected
